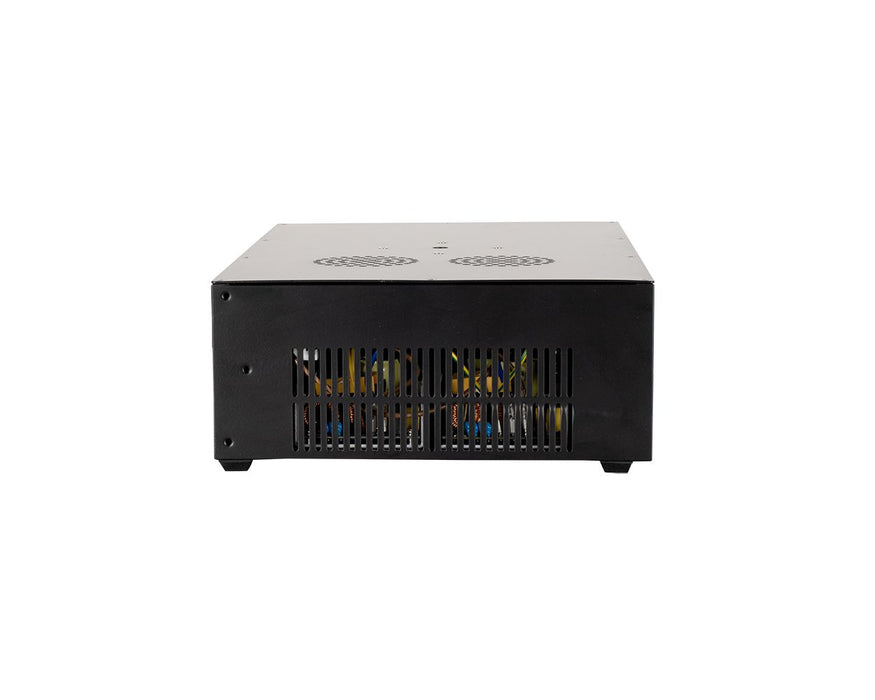

Pixie Driver 8000 V2

Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip Series. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols.

The Pixie Driver 8000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Control Features:

• Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• Drives up to 8,160 Pixels via KlingNet, ArtNet and sACN (1,020 Pixels per port)

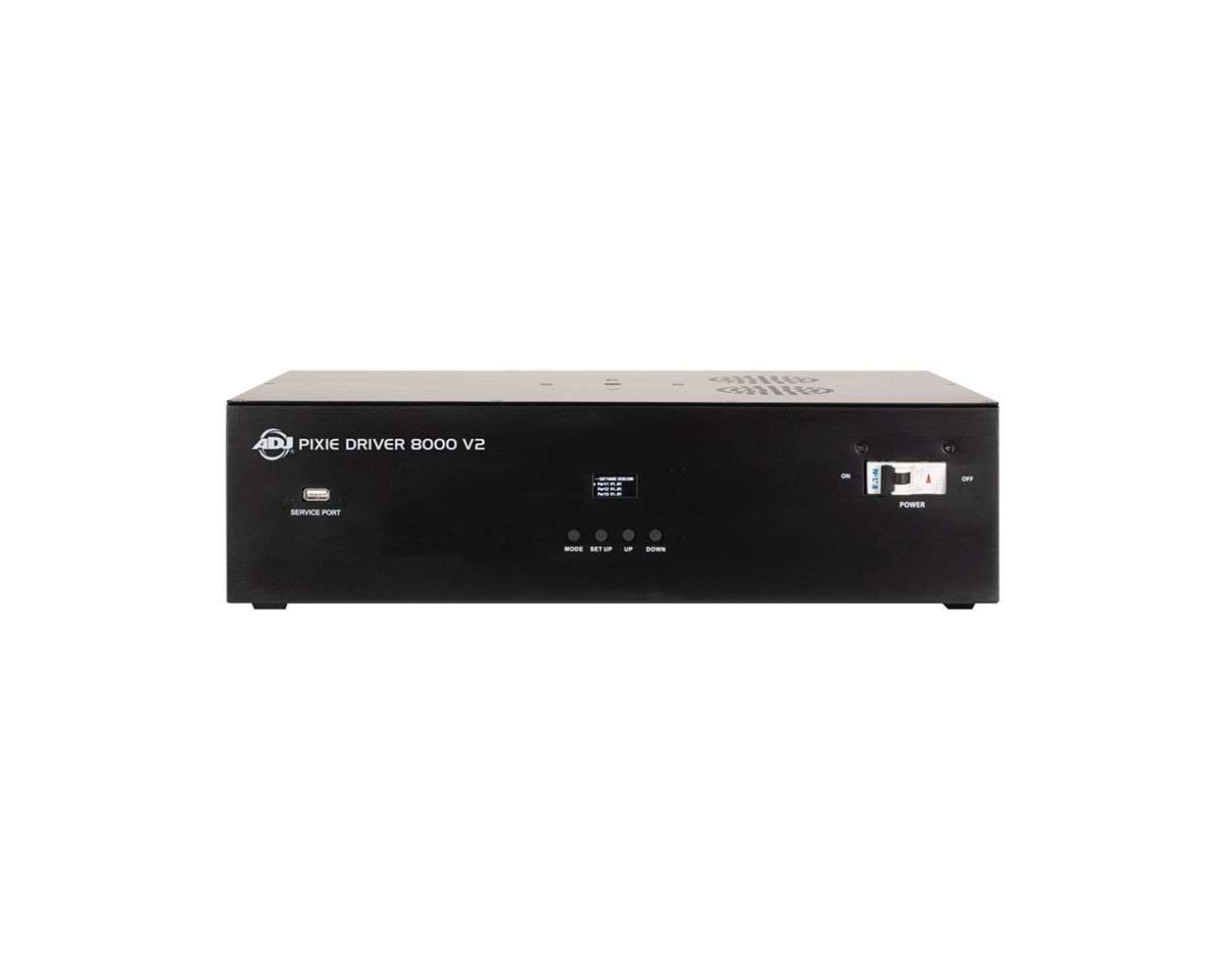

• OLED screen with 4-button menu
• USB port for Firmware Updates

Control Quantity:

• KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's (8) Pixie Strip 120's or (17) Pixie Curve 60's (Per port. Or any combination not exceeding 1,020 pixel per port)
• ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's, (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixel per port)
• sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixel per port)

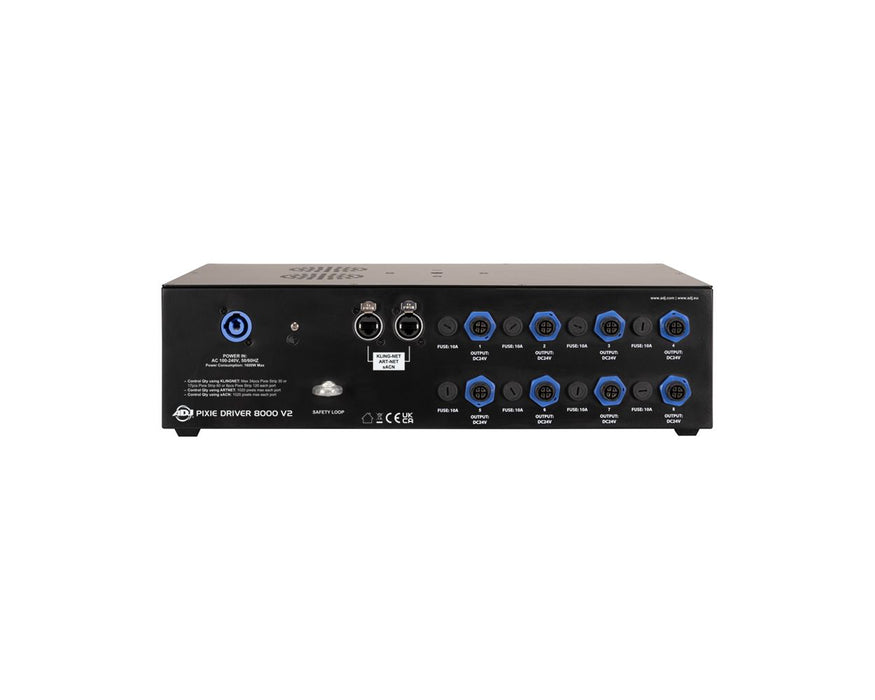

Connections:

• Power: PowerLock Input
• Two locking RJ45 ports
• Eight 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye

Electrical:

• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 1,600W max
• -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 11.8” x 18.9” x 4.7” / 300.3x480x120mm
• Weight: 13.4 lbs. / 6.1 kg.

Approvals:

• CE | cETLus (Pending)

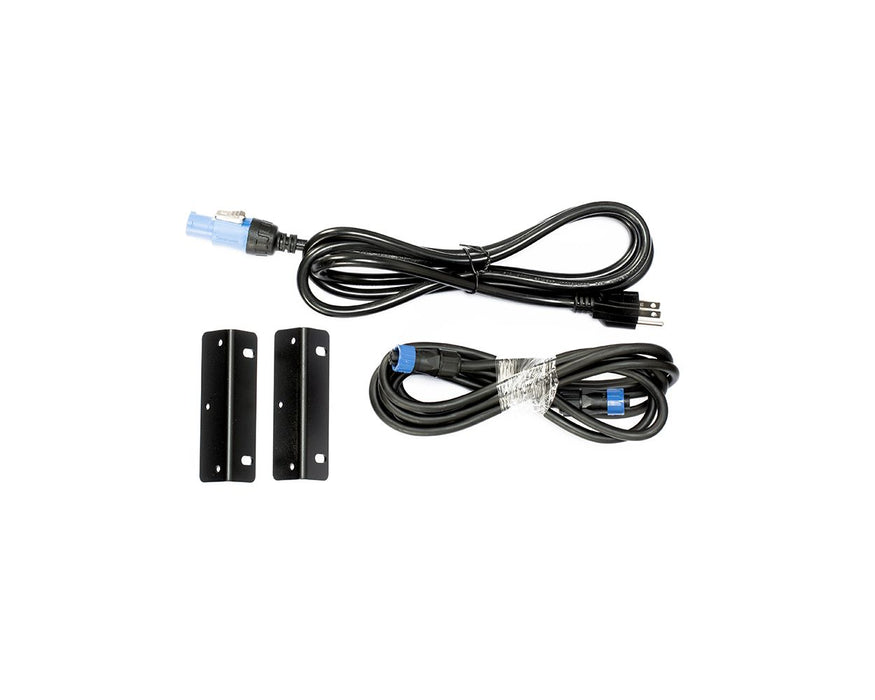

Included Accessories:

• (1) 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip link cable
• (1) SIP20MPC (SIP293): Power Input cable
• (2) 19" Rack Ears
