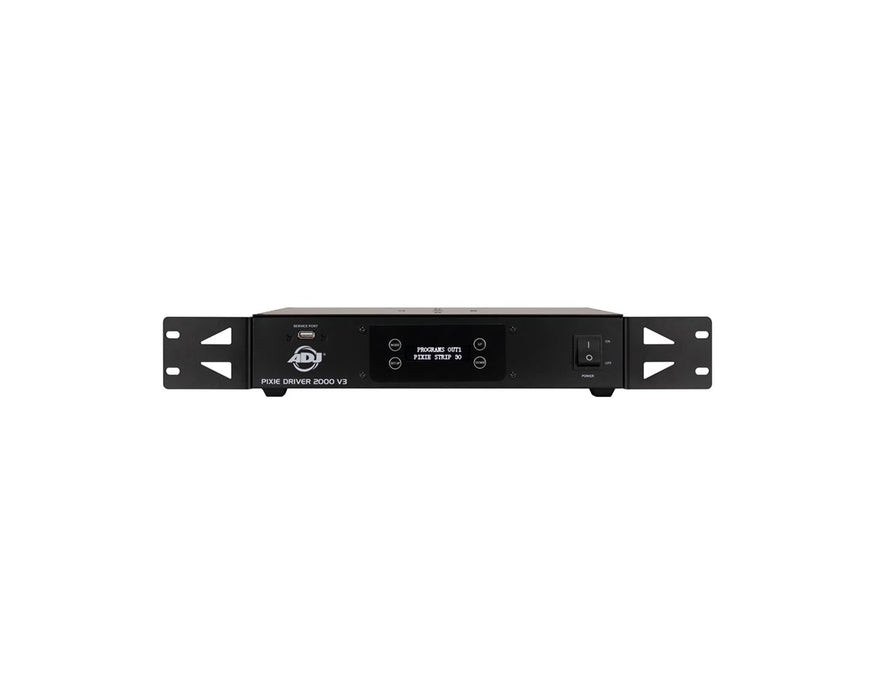

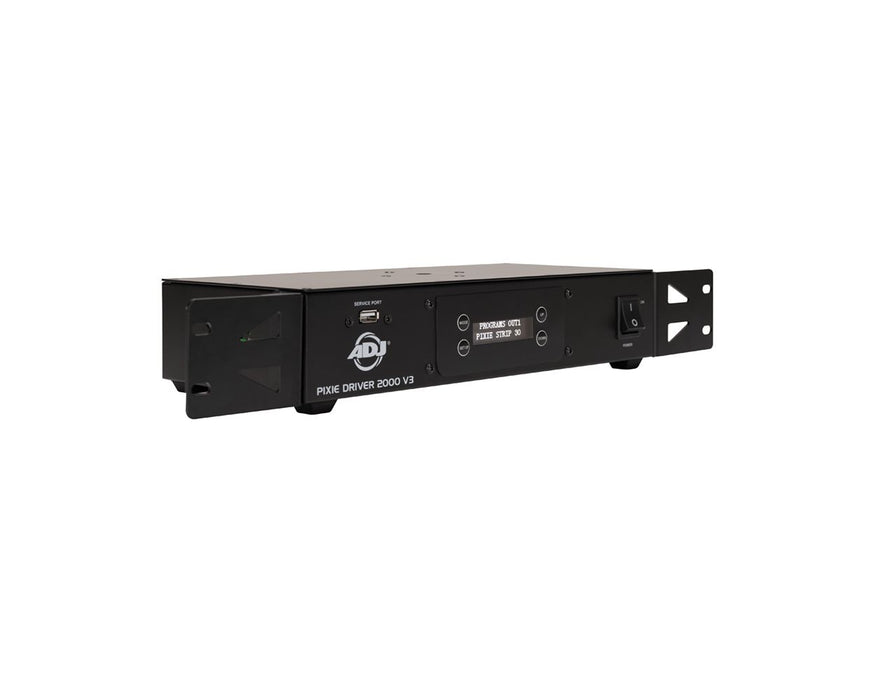

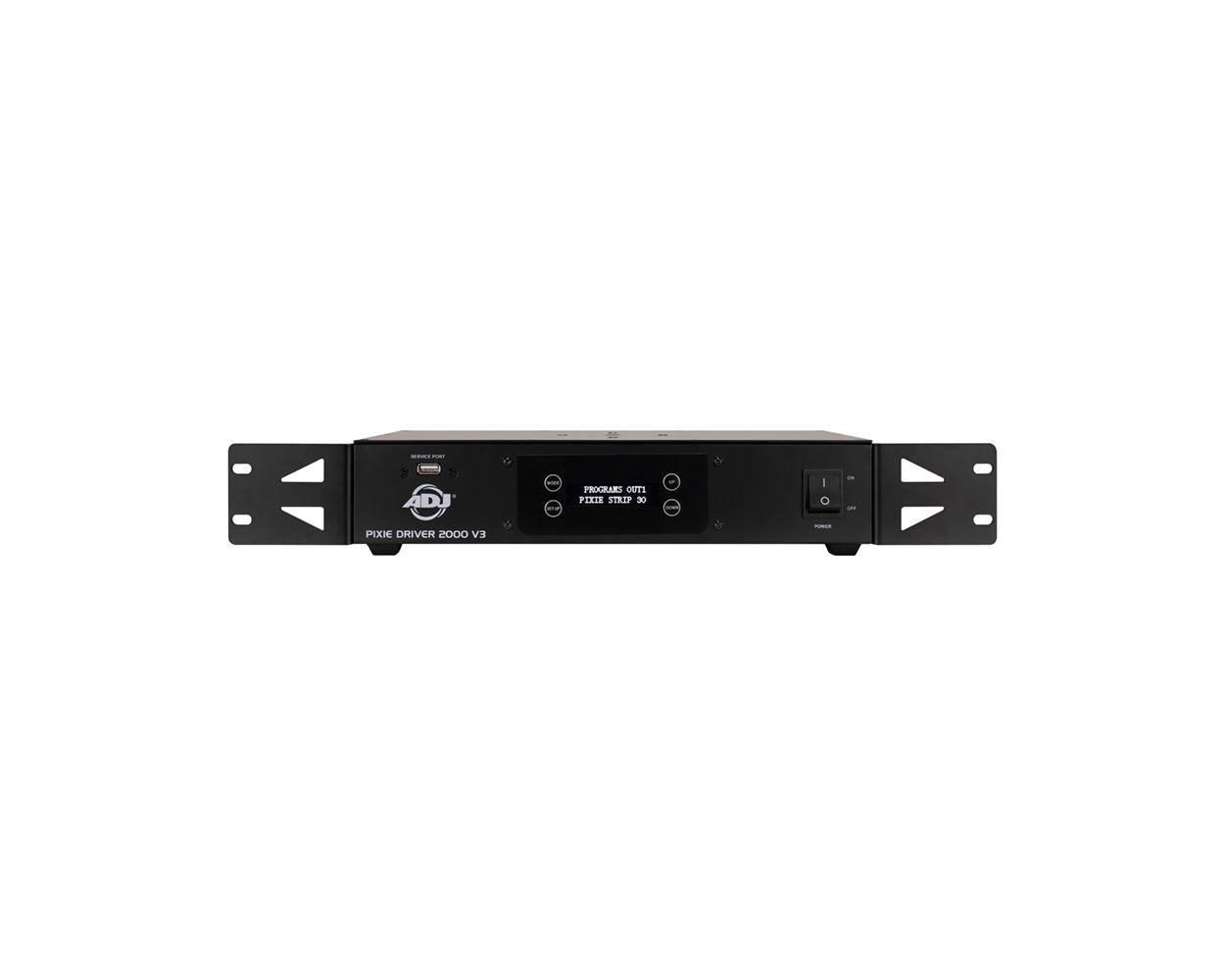

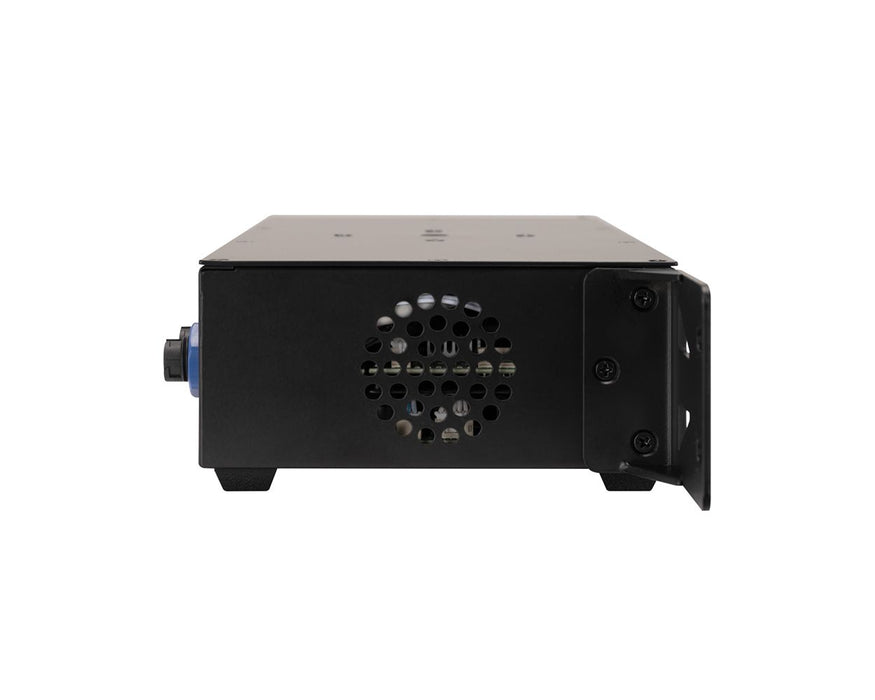

Pixie Driver 2000 V3

The Pixie Driver 2000 V3 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 1 to 50 feet). The Pixie Driver 2000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included). There is a USB port on the front panel to easily make updates to the firmware.

Control Features:

• Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
• Manual RGB mode
• Internal programs
• Manual Dimming and Strobe Control
• Full Pixel Mapping Control
• 2,040 Pixels via Kling-Net, ArtNet and sACN (1020 Pixels per Port)
• OLED screen with 4-button menu
• RDM compatible
• USB port for Firmware Updates

Control Quantity:

• KlingNet/Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)

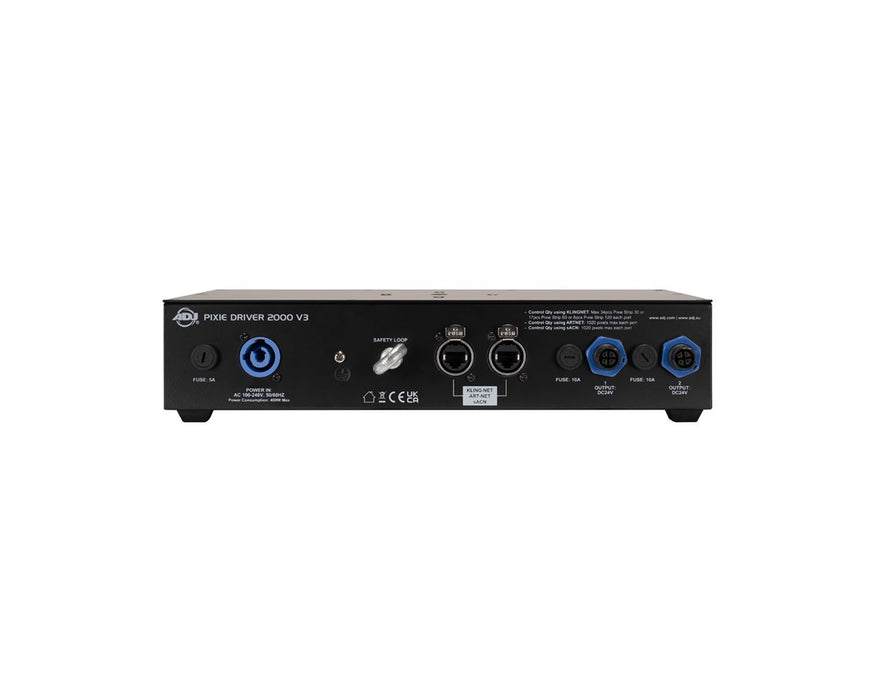

Connections:

• Indoor Power Locking Input
• Two locking RJ45 ports
• Two 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options:

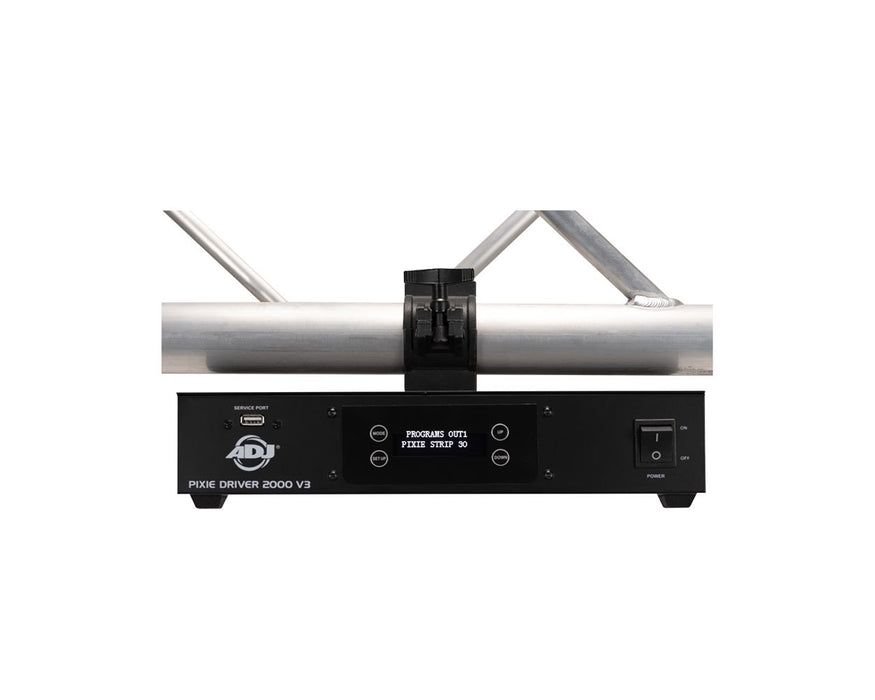

• Bolt to add a clamp to hang from truss (clamp and truss not included)
• Includes 19-inch rack mount ears
• Safety eye

Electrical:

• Multi-voltage operation: AC 100-240V, 50/60Hz
• Power Consumption: 400W max
• -4°F to 113°F (-20°C to 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
• Weight: 5.6 lbs. / 2.5 kg.

What's Included:

• Twist-Lock power cable
• 19-inch rack mount ears
• 4-pin data cable

Approvals:

• CE
• cETLus
