Lightronics RD122SO Rack Mount Dimmer - Socapex Output Panel
Lightronics RD122SO Rack Mount Dimmer - Socapex Output Panel

Lightronics RD122SO Rack Mount Dimmer - Socapex Output Panel

by Lightronics
$2,560.50
Item #: 25433
Found it cheaper? We will Price Match
Customer Service: (800) 245-6630
Product Highlights
  • Channels: 12
  • Watts per channel: 2400
  • Total wattage: 28,800
  • Control protocol: DMX/LMX
  • 8 built in chases
  • Dim/Non Dim control
  • Soft start
  • Soft patch
  • Power input: 120 Amps/Phase 2 phase
  • Input connections: Terminal block

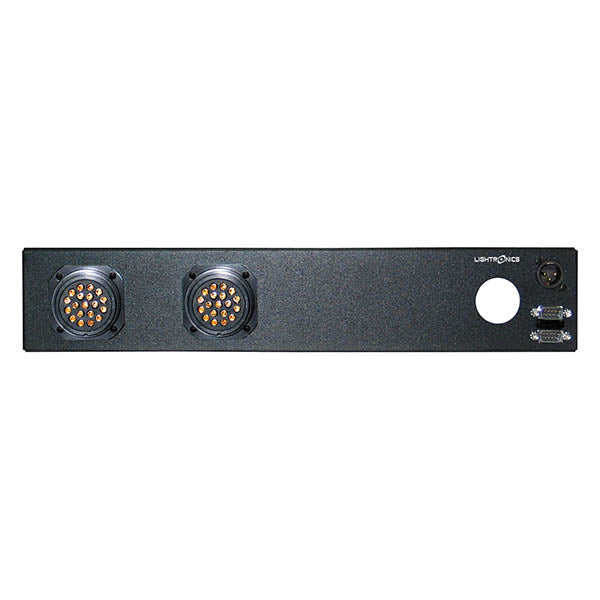

  • Socapex Outlet Panel *Non UL-508 Compliant
  • 20 Amp magnetic circuit breaker for overload protection
  • 19"W x 3 1/2"H x 16"D, 33 lb

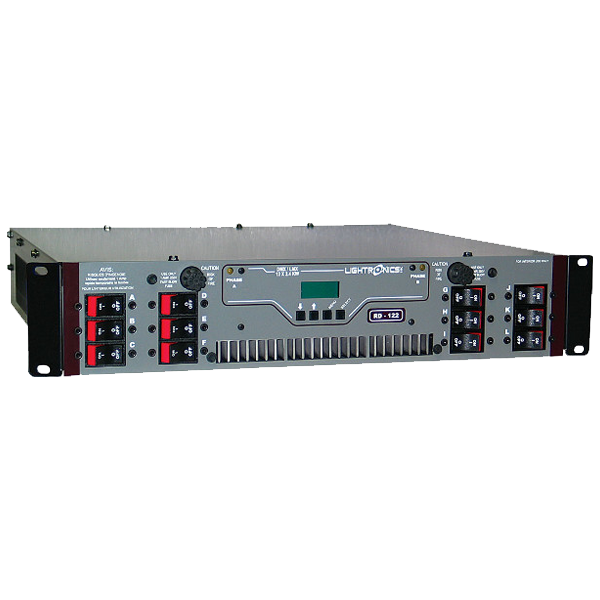

The RD122 is a 28,800 Watt, 12 channel, rack mount lighting dimmer. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications. Each of the channels has a capacity of 2400 Watts. It is controlled via low voltage signals which may be LMX-128 (3 wire multiplex), or USITT DMX- 512. The unit is fan cooled. Channels may be independently assigned from the unit. The unit is over temperature and over voltage protected and has a magnetic circuit breaker for each channel.

There are several options for channel output connection panels. Options include: Edison plug, External Terminal Strip, Patch Panel, and Socapex Connector panel. The RD122 has several stand alone functions which enable it to operate without a control console. These functions include a storable scene which may be activated by an external switch closure, a programmable chaser, and 7 factory set chase patterns.

Product Features:

  • Channels: 12
  • Watts per channel: 2400
  • Total wattage: 28,800
  • Control protocol: DMX/LMX
  • 8 built in chases
  • Dim/Non Dim control
  • Soft start
  • Soft patch
  • Power input: 120 Amps/Phase 2 phase
  • Input connections: Terminal block
  • Socapex Outlet Panel *Non UL-508 Compliant
  • 20 Amp magnetic circuit breaker for overload protection
  • 19"W x 3 1/2"H x 16"D, 33 lb

Documentation:

Manual
RD-122 User Manual
Cut Sheet
RD-122 Cut Sheet
