LB Hex™ Alloy

Summary

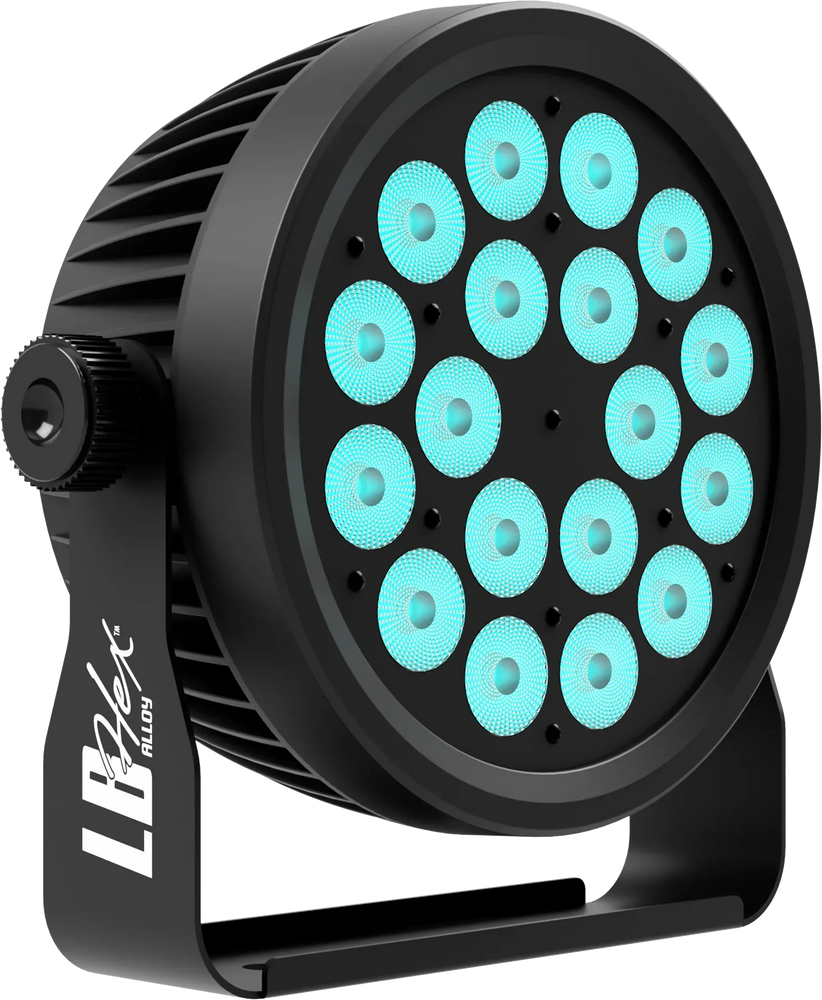

LB Hex™ Alloy is a compact, powerful 6-in-1 LED wash fixture built for accurate color mixing and flexible control. Its 18 high-output RGBAW+UV LEDs produce deep saturates, controlled whites, and bold accent colors. With quick access to 59 static colors including 32 Rosco® matched presets, LB Hex™ Alloy integrates easily into workflows that require predictable color behavior. Designers can choose from 6, 8, or 11 channel DMX modes depending on the level of control needed, and the rugged metal housing includes a mounting bracket for fast setup in almost any orientation.

The Rundown

• 18x 18 W RGBAW+UV 6-in-1 LEDs
• 59 static colors including 32 Rosco® matched presets
• CCT control from 2,000 K to 5,700 K via DMX
• 25 degree beam angle
• Flicker free constant-current LED driver
• Auto and sound active modes plus 12 built-in shows
• 5-pin XLR in and out
• PowerCON© TRUE1 compatible power in and out
• 6, 8, or 11 channel DMX modes
• Rugged metal housing and adjustable bracket
• 2-year limited warranty

Optical

• LEDs: 18x 18W RGBAW+UV LEDs
• Beam Angle: 25 degrees
• Luminous Intensity: 3,076 lux @ 2.5 m, 746 lux @ 5 m

Control

• Protocol: USITT DMX-512, RDM
• DMX Channels : 6 / 8 / 11
• Interface: 4-button LED menu
• Modes: DMX, Master / Slave, Standalone, Auto, Sound Active

Power & Current

• Operating Voltage: AC 110 to 240 V, 50 to 60 Hz
• Power Consumption: 144 W (1.85 A, PF 0.67)
• Maximum Operating Temperature: 104 °F (40 °C) ambient

Dimensions

• 10.2" x 10.9" x 4.1"
• 6.1 lbs.

Connections

• DMX In / Out: 5-pin XLR male / female
• Power: PowerCON© TRUE1 In / Out
• Mounting: Adjustable bracket with safety loop
