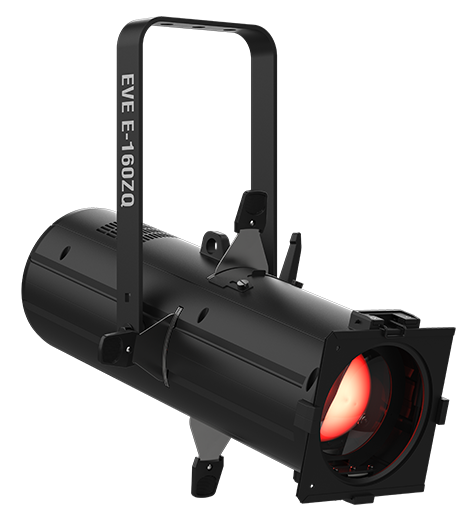

EVE E-160ZQ

Upgrade your small stage lighting with EVE E-160ZQ. This full-color ellipsoidal is designed for both mobile and install applications. With a 160W quad-color (RGB+WW) LED this fixture is at the top of its class. Its pre-set color temperature ranges simplify the lighting design process. Enjoy effortless stage lighting with EVE E-160ZQ.

Highlights

• Full-color ellipsoidal designed for mobile and installation applications
• Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances
• Pre-set color temperature ranges eliminate the need for manual color blending
• Flicker-free operation suitable for on-camera use
• D-Fi USB compatibility for wireless master/slave or DMX control
• powerCON®-compatible power input/output connections for power linking

Specifications

• DMX Channels: 3, 4, 11
• DMX Connectors: 3 and 5-pin XLR
• Light Source: 1 LED (quad-color RGBW) 160 W, 7.3 A), 50,000 hours life expectancy
• Zoom Angle: 24° to 37°
• Lumens: 5231
• Power Linking: 9 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thicknes
• Weight: 12.2 lb. (5.5 kg)
• Size: 18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
• Approvals: CE, RoHS, METAccessory
• Holder Size: 6.25 in
• Color Temperature Range: 2800 K – 8000 K
• Strobe Rate: 1 to 30 Hz
• Illuminance (24°): 7072 lux @ 2 m
• Illuminance (37°): 2964 lux @ 2 m
• Illuminance (24°): 1132 lux @ 5 m
• Illuminance (37°): 474 lux @ 5 m
• Power and Current: 150 W, 1.3A @ 120 V, 60 H
• Power and Current: 150 W, 0.7 A @ 230 V, 50 Hz
