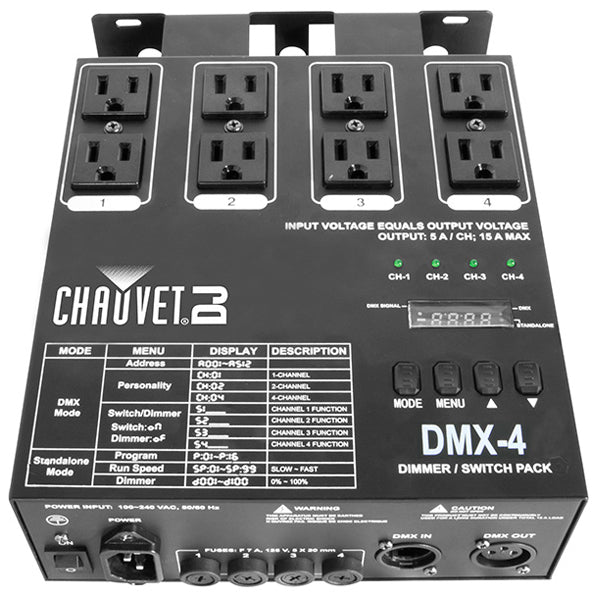

A 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. Sixteen user-selectable chase patterns make programming a breeze.

Product Features:

  • 4-channel dimmer/switch pack with up to 5 amps per channel (15A max)
  • Provides DMX control for on/off or dimming to non-DMX fixtures
  • Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
  • Custom looks at your fingertips with 16 built-in, configurable chases,
  • Easy control using standalone mode or DMX control
  • Increase flexibility by setting each channel as a dimmer or switch
  • Control up to eight units simultaneously with four duplex outlets
  • Monitor the status of each channel with separate LED indicators
  • Generate a synchronized show using easily accessible automated programs, built-in automated programs
  • Great control without DMX using automated programs with adjustable speeds and dimmer levels
  • DMX Channels: 1, 2, or 4
  • DMX Connectors: 3-pin
  • Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
  • 8.3" x 7.7" x 2.8", 5 lb
  • Approvals: CE

Documentation:

Manual
DMX-4 User Manual
Quick Reference Guide (Multi-Language)
DMX-4 Quick Reference Guide
