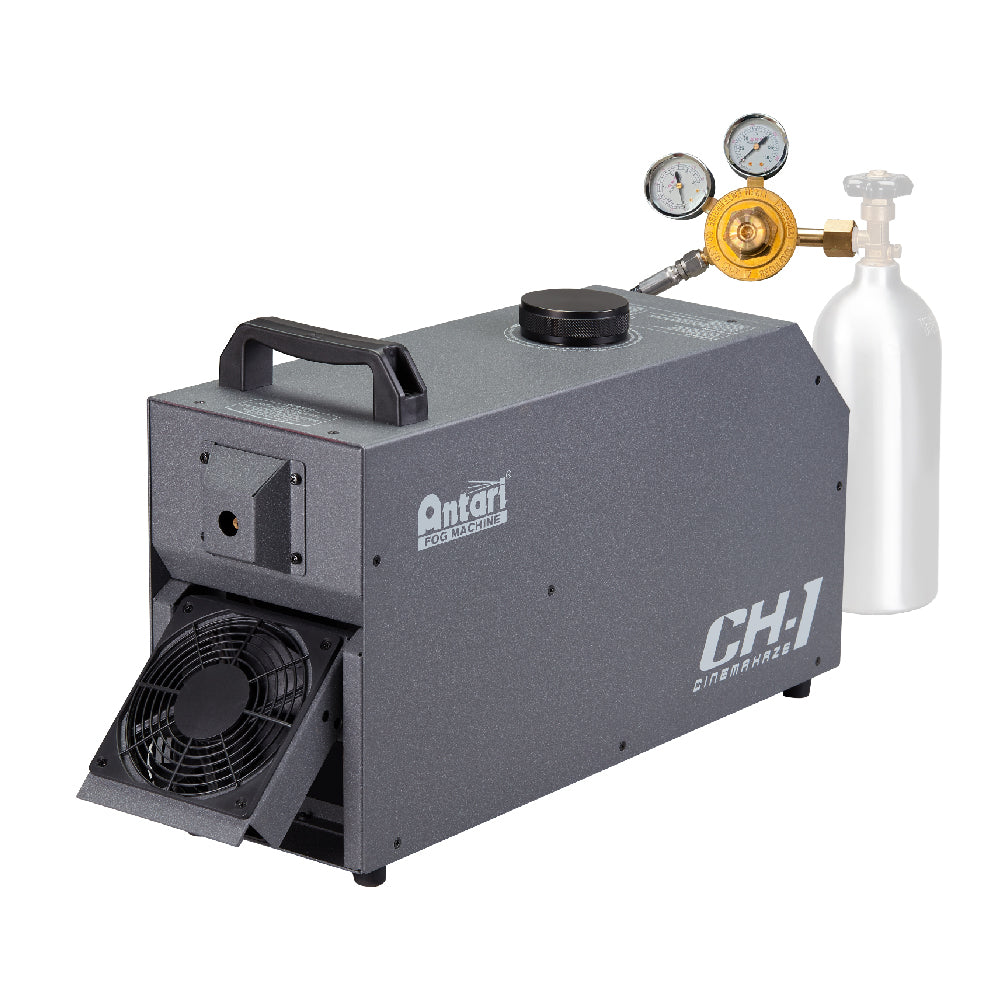

CH-1 C02 Fog Machine

Meet the Antari CH-1, the inaugural CO2 machine setting new standards in performance. Its pioneering design delivers whisper-quiet operation, seamlessly blending into any environment. With extended hang time, it creates an enchanting atmosphere, perfect for elevating events to unforgettable heights with its unmatched reliability and sophistication.

FEATURES

• Color Touch Screen Panel
• Low Fluid Consumption
• Quiet Operation
• Adjustable Fan
• Long Hang Time

Note: This machine is only compatible with high‑pressure CO2 cylinders; do not use siphon (Dip Tube) cylinders.

• Input Voltage: AC 100-240V, 50 / 60 Hz
• Rated Power: 120V 6.0A 700W or 240V 5.5A 1250W
• Warm-Up Time: 8 Minutes (approx)
• Fluid Consumption: 2 ml/min @40psi / 2.76bar (100% Output)
• Fluid Tank Capacity: 2.5 Liters (0.66 Gallon)
• Compatible Fluid: Antari CHL-2 Haze Fluid
• Gas Type: CO2, N2
• Gas Pressure Range: 50 – 60psi / 3.4 bar- 4.1bar
• Gas Consumption: 0.36 Kg / hr @ 40 psi or 0.18 Kg / hr @ 20 psi
• Control Methods Interface: TFT LCD Touch screen
• Ambient Temperature Range: 0°C – 40°C (32°F – 104°F)
• Control Methods: Manual / Timer / DMX 512 / Wireless DMX (Optional)
• DMX Channels: 1 / 3 / 5 Channel
• Interface: Neutrik powerCON TRUE 1 (Power) / XLR 3-Pin & 5-Pin (DMX) / 9/16 -18 R.H (Gas inlet)
• Included Accessories: Pressure Gauge & Air Hose
• Optional Accessories: TIMO-W-DMX-PCBR Wireless DMX and FCH-1 Flight Case
• Dimension: 22.79" (L) x 6.46" (W) 12.25"
• Weight: 37.48 lbs
