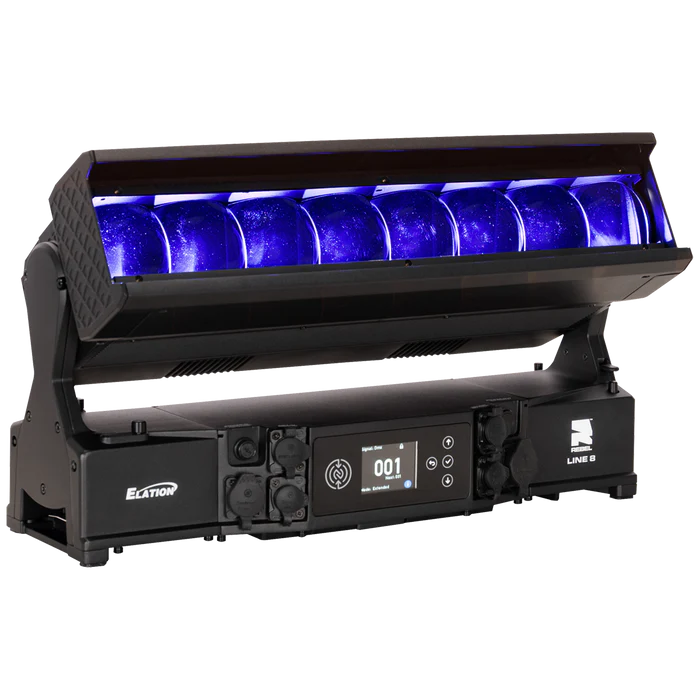

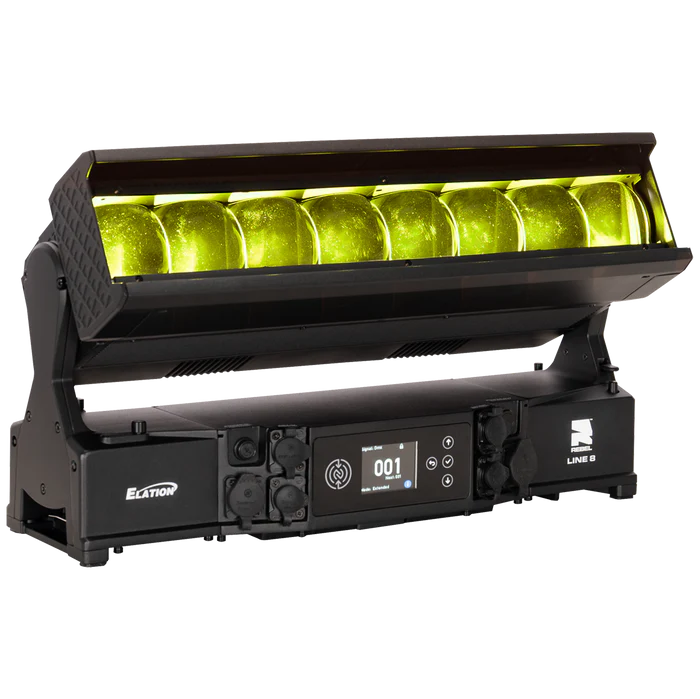

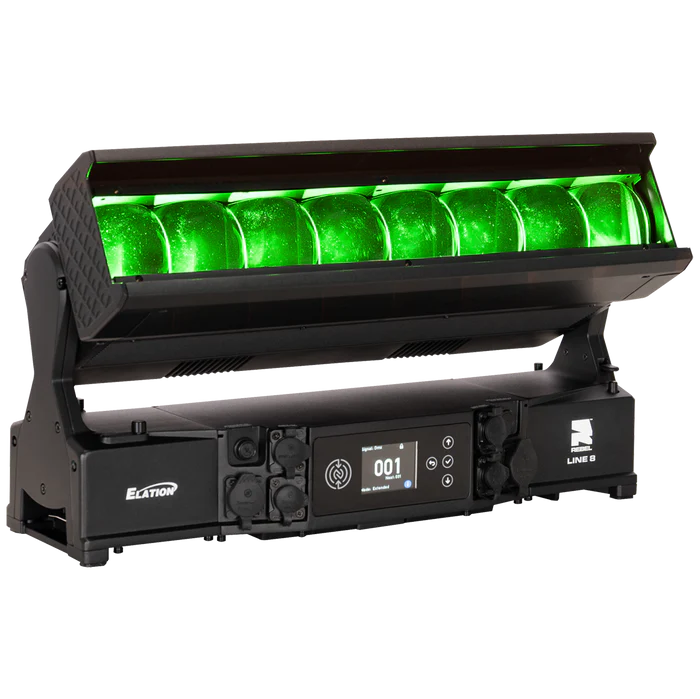

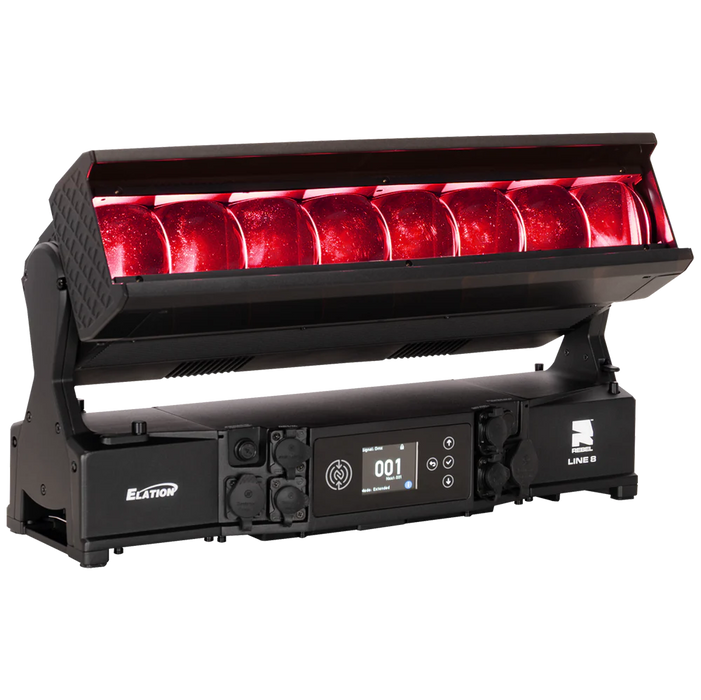

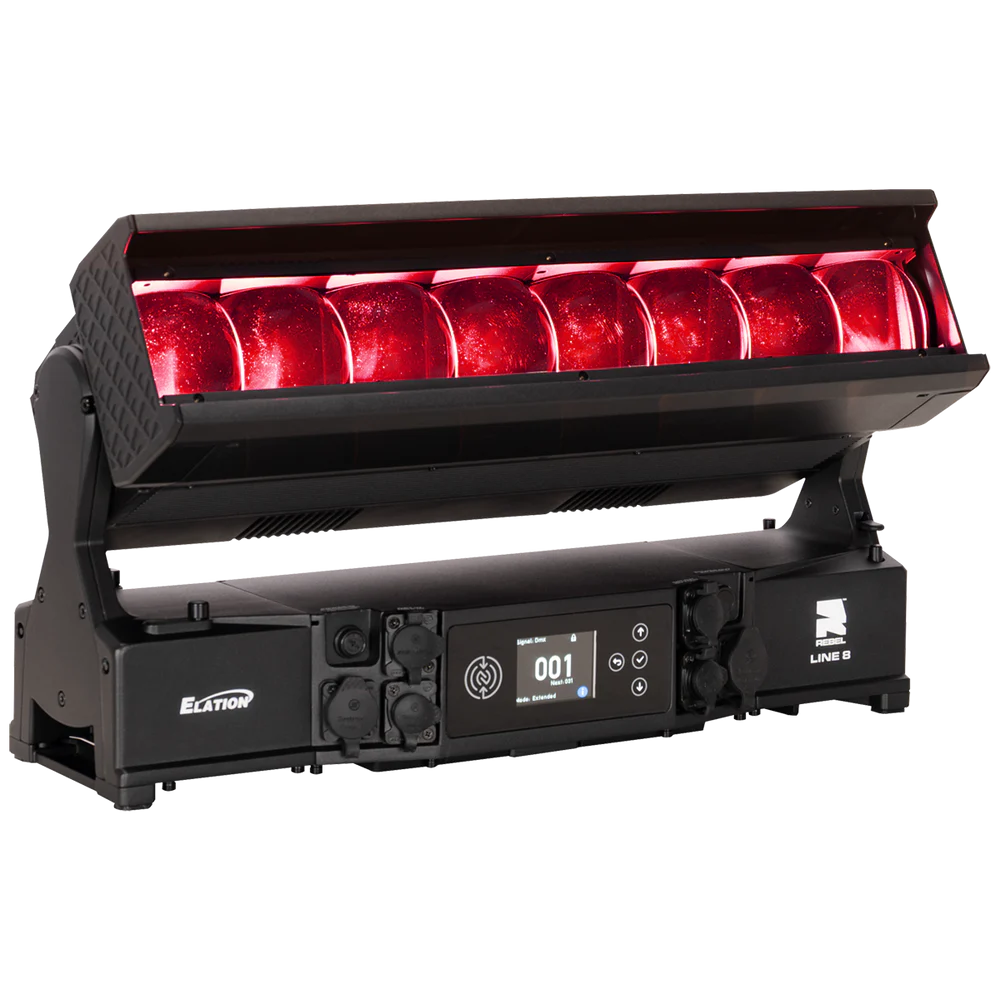

The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.
A seamless linear lens system and rapid 210° tilt movement create bold, continuous beams that transform effortlessly from razor-sharp aerials to a smooth, enveloping wash. The integrated Sparkle Beam FX adds refined texture, while the SparkX cool-white crossing beams cut through the scene with crisp, unmistakable definition.
A built-in magnetic alignment system allows the REBEL LINE 8 to snap together with other LINE fixtures, forming flawless beam lines and high-impact pixel effects that read as one continuous visual element across any stage. Paired with its rugged IP65 construction and compact, tour-ready form, the REBEL LINE 8 is built for environments demanding bold intensity, sweeping kinetic motion, and advanced pixel artistry for any stage.
- (8) 60W RGBL LEDs with Pixel Control
- (16) 5W CW SparkX LEDs with Pixel Control
- 11,548 Total Fixture Lumen Output (Sphere)
-
Beam Angle: 4°-35°
- Fast and precise 210° Tilt Rotation
- IP55 Tilt FX Fixture
Specifications
Source
- (8) 60W RGBL LEDs
- (16) 5W CW SparkX LED Pixels
- 30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data
-
Total Lumen Output: Integrating Sphere
-
All LED: 11,548 Lumens
-
RGBL LED: 7,128 Lumens
-
CW LED: 4,752 Lumens
-
CRI: 82
-
Zoom Range: 4° - 35°
Effects
- Motorized Zoom
- Full Pixel LED Control
- SparkX LED Beam Effect
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
-
Tilt Angle: 210°
Color

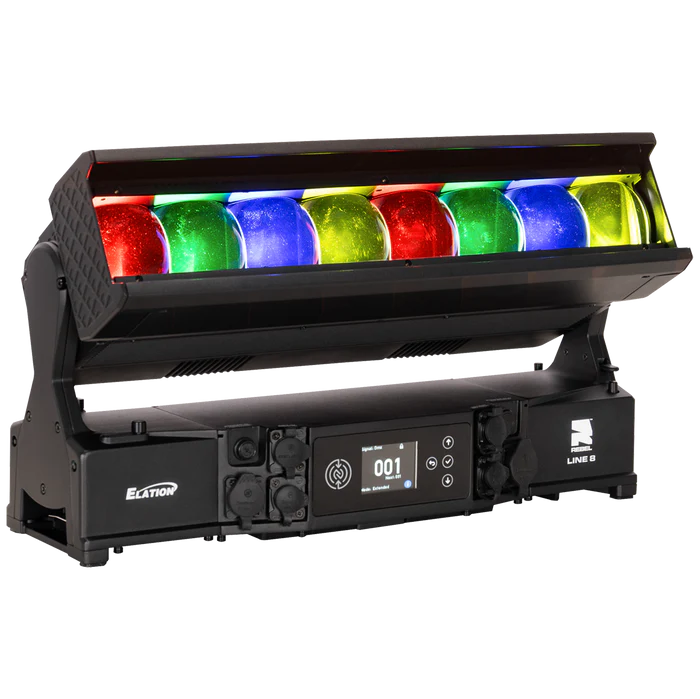

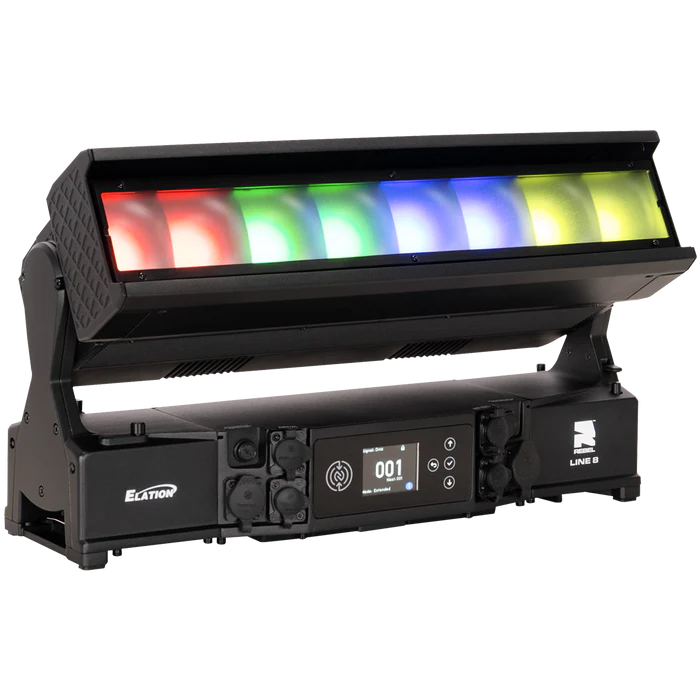

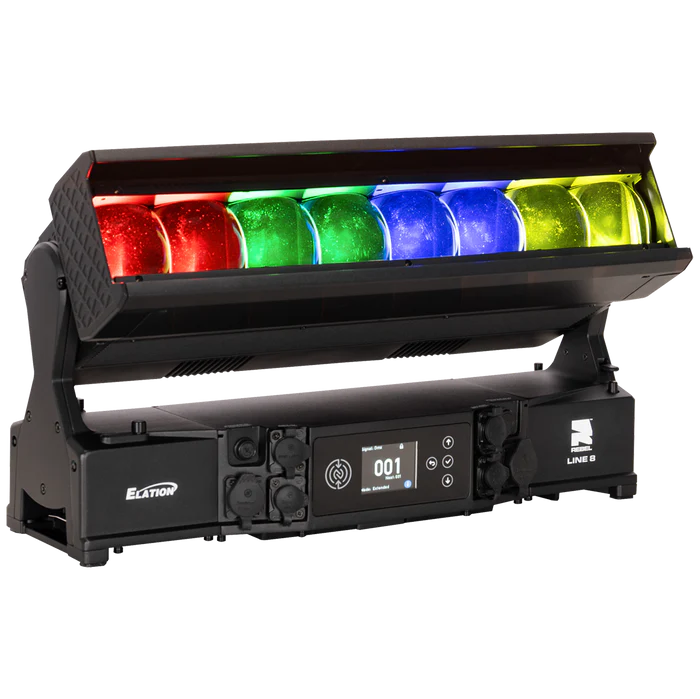

- RGBL LED Array
- CW SparkX LED Array
-
Variable CCT: 2400K - 8500K
- Virtual Gel Swatch Book
Control/Connections
-
3 DMX Channel Modes: 22/30/70 channels
-
DMX Adjustable Refresh Rate: 900 -25000 Hz

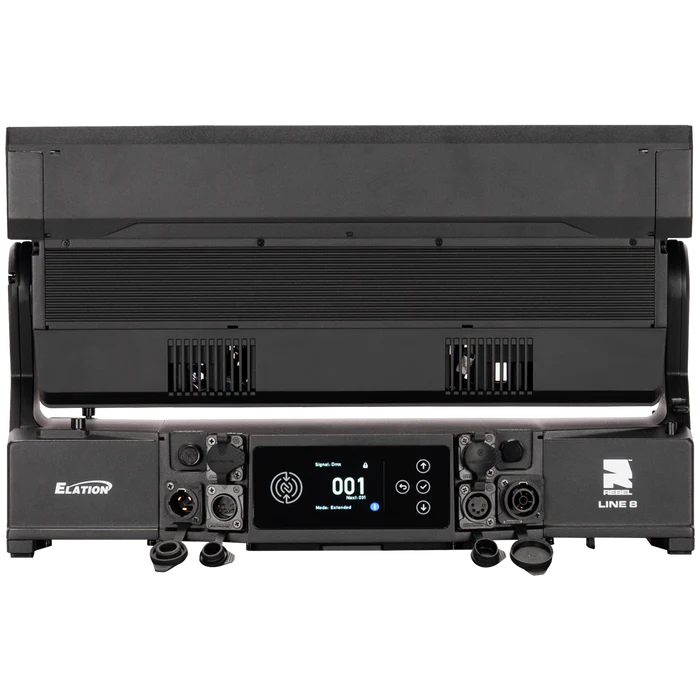

- 4 Button Control Panel, LED Display
- Aria x2 Wireless Device Management
- NFC Configuration
- DMX, RDM, Art-NET, sACN Protocol Support
- IP65 Locking 5pin XLR Connector In/Out
- IP65 Locking RJ45 Ethernet Connector In/Out
- IP65 Locking Power Cable In/Out
Size/Weight
-
Length: 19.7 in (500mm)
-
Width: 6.1 in (168mm)
-
Height (head up): 13.4 in (342mm)
-
Height (head 90 degree): 10 in (254mm)
-
Weight: 29 lb (13.2 kg)
Electrical/Thermal
- AC 100-240V 50/60Hz
- 810W Max Power Consumption
-
Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
-
BTU/hr (+/- 10%): 2762.1

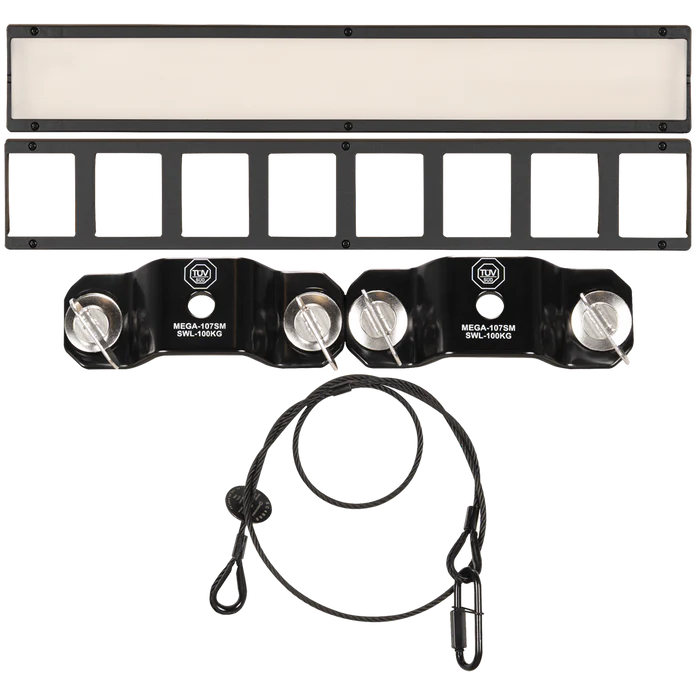

Included Items

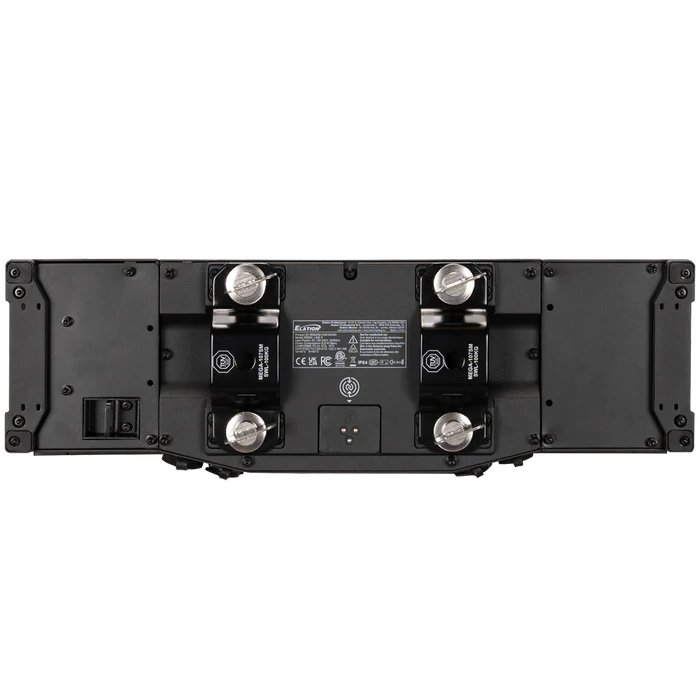

- Omega Brackets (x2)
- Blank Name Plate

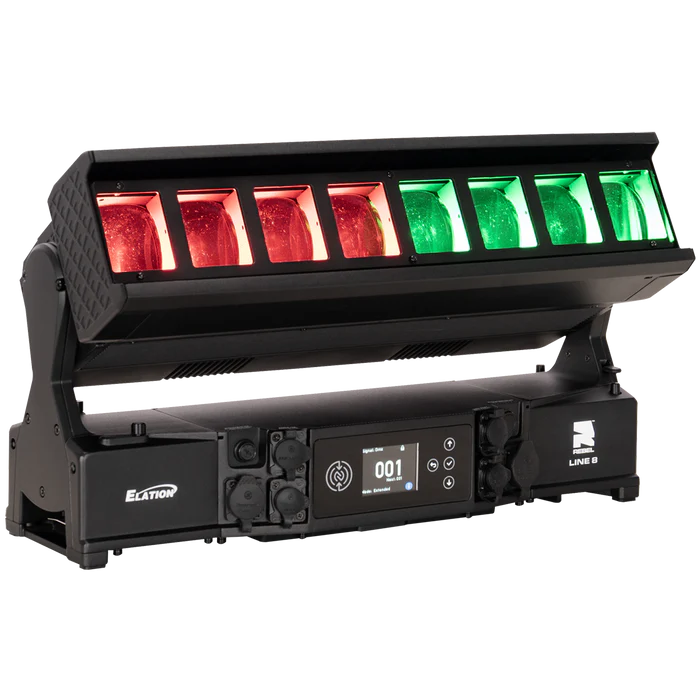

- Front Louver/Grid
- Diffusion Filter
- Safety Cable IP65 Rated
- IP65 Locking Power Cable
Approvals/Ratings
