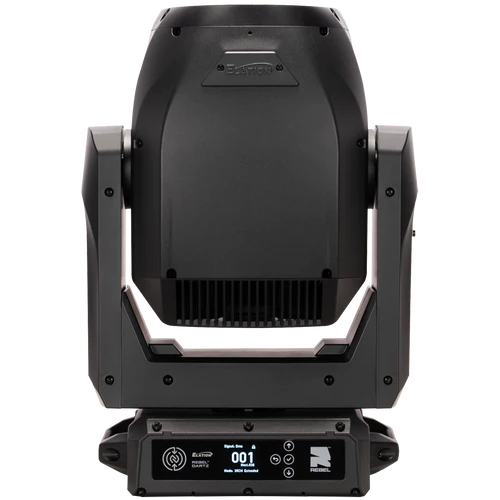

The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment. Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam—sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease. With 360° continuous pan and tilt, REBEL DARTZ unleashes unbound motion with kinetic energy. Its dual gobo wheels, layered prisms, and frost equip designers with a deep creative arsenal in a deceptively small footprint. With an RBL LED engine, REBEL DARTZ produces a wide, punchy spectrum with smooth output and rich saturation, while a dedicated True Green filter adds even more versatility for building dynamic color-pairings.

As the long-awaited update to the community-favorite DARTZ 360, the REBEL DARTZ boasts four times the brightness and more gobos, all in a compact, weather-resistant, IP65-rated design. It rigs fast, travels light, and thrives anywhere the show demands—and with Aria X2 wireless DMX and RDM, NFC configuration, and five selectable fan modes, including a silent setting, it keeps setup, service, and noise control firmly dialed in.

Built to hit harder, shine sharper, and leave a mark that makes every design unmistakably REBEL, the REBEL DARTZ is a fixture that refuses to blend in.

150W RBL LED Engine

  • 150W RBL LED Engine
  • 1.5˚ Beam
  • 125,475 lux: @ 5M
  • True Green Color Filter
  • FX Package with Rotating & Fixed Gobos, Dual Stacking Prisms & Frost
  • Variable CCT: 6500K- 16000K
  • Endless High-Speed 360˚ Pan and Tilt Movements
  • NFC & Aria x2 Wireless Device Management
  • IP65

Specifications

Source

  • 150W RBL LED Engine
  • 20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data

  • TBA Lumen Total Fixture Output
  • 125,475 lux @ 5M
  • Beam Angle: 1.5˚

Effects

  • Variable Strobe Rate: 1- 20Hz
  • Remote Focus
  • Heavy Frost Filter
  • Dual Independent Stacking Prisms (6 Facet Linear & 8 Facet Circular)
  • Variable 16-bit Dim Curve Modes
  • DMX Controllable LED Refresh Rate
  • Pan Angle: 360/540°
  • Tilt Angle: 360/270°
  • Continuous 360° Pan and Tilt Rotation

Color

  • RBL Color Array

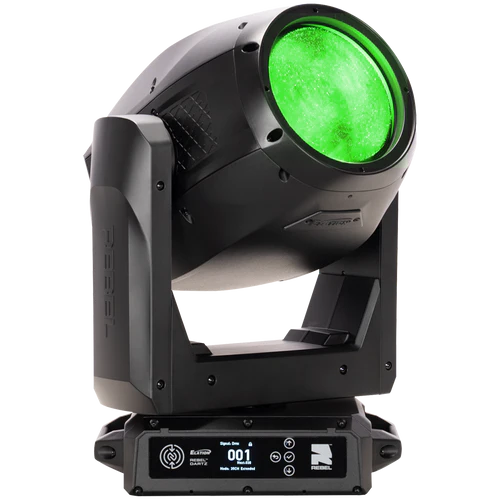

  • True Green Color Filter
  • Variable CCT: 6500K- 16000K
  • Virtual Gel Swatch Book

Gobos

  • 2 Gobo Wheels
  • 10 Interchangeable-Rotating / Indexing Metal Gobos
  • 16 Static-Stamped Metal Gobos

Control/Connections

  • 2 DMX Channel Modes
  • (4) Button Touch Panel
  • 180° Reversible LCD Menu Display
  • Hibernation Mode (Power Save)
  • DMX, RDM, Art-Net and sACN Protocol Support
  • Aria x2 Wireless Device Management
  • NFC Configuration

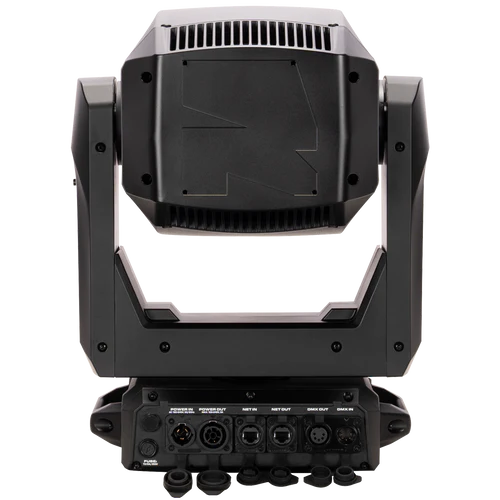

  • IP65 5pin DMX In/Out
  • IP65 RJ45 Ethernet In/Out
  • IP65 Locking Power In/Out

Size/Weight

  • Length: 8.1" (205mm)
  • Width: 13.3” (337mm)
  • Height: 18.8” (478mm)
  • Weight: 35 lbs. (15.9kg)

Electrical/Theatrical

  • AC 100-240V 50/60Hz
  • 240W Max Power Consumption
  • Power Thru Capacity: 10A (4 units @115V, 9 units @240V)
  • -4°F to 113°F (-20°C to 45°C)

Approvals/Ratings

  • CE
  • cETLus
  • IP66
  • FCC
