Maverick MK PYXIS
Maverick MK PYXIS

Maverick MK PYXIS

by Chauvet Professional
$2,000.00
Item #: MK YXIS
Found it cheaper? We will Price Match
Customer Service: (800) 245-6630
Product Highlights

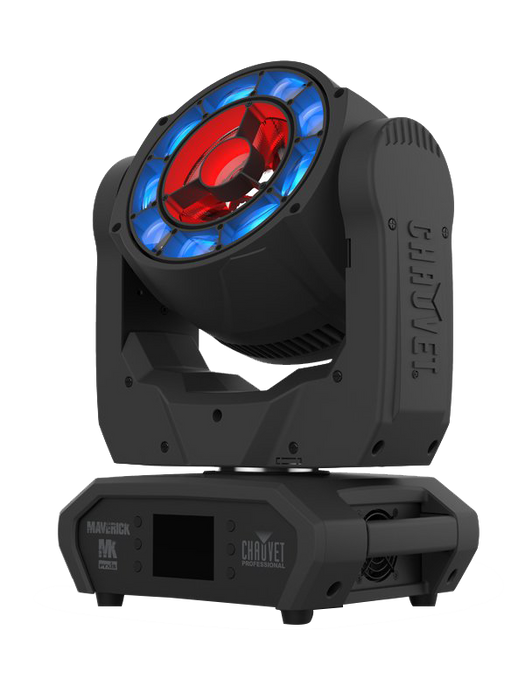

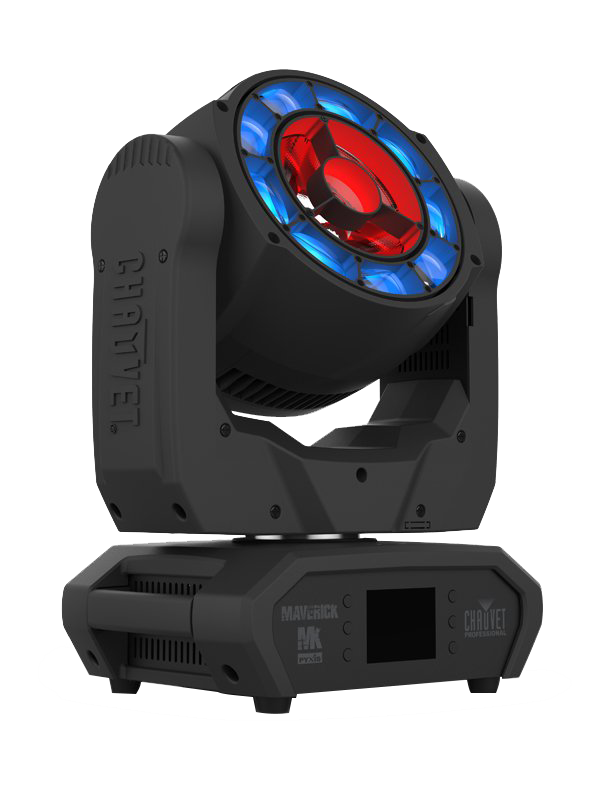

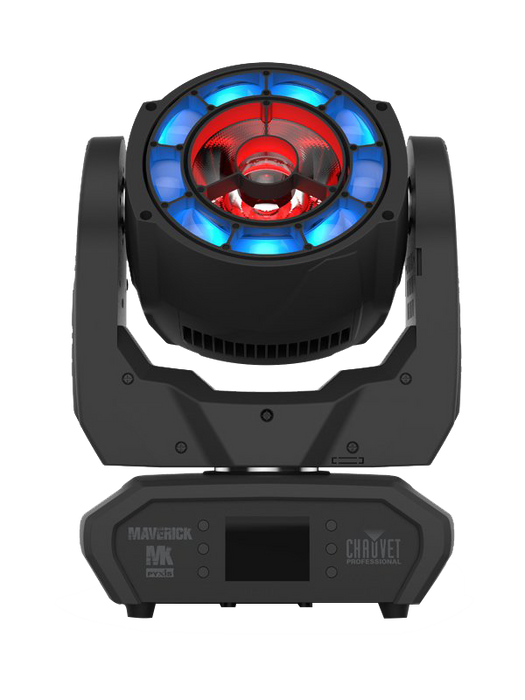

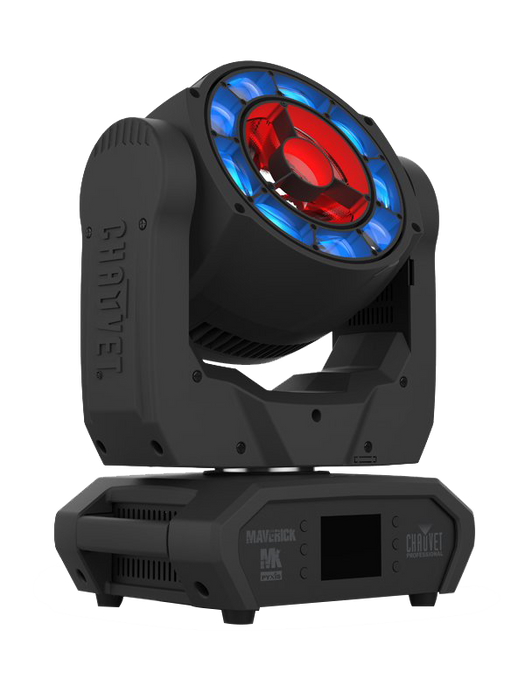

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 7° to 45° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

  • A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement
  • A (9) 15 W RGBW LED outer ring of LEDs with a 7°— 45° zoom angle and pixel control for wide and narrow effects
  • A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects
  • Built in color effects for quick design possibilities
  • Built in virtual gobo wheel with background colors for impressive atmospheric effects
  • Quiet operation for a wide range of installation situations
  • DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
  • RDM enabled for remote addressing and trouble shooting
  • Converts TCP/IP to DMX for shorter data cable runs
  • 7°— 45° zoom angle for variable beam sizes
  • True 1 compatible power input
  • Battery backup touchscreen display with auto rotate depending on fixture orientation
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

SPECIFICATIONS

Optical

  • Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
  • Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle (center pixel and outer ring): 3°
  • Beam Angle (center pixel): 3°
  • Beam Angle (outer ring): 5° to 28°
  • Field Angle (center pixel and outer ring): 6°
  • Field Angle (center pixel): 5°
  • Field Angle (outer ring): 7° to 45°
  • Zoom Angle: 7° to 45°
  • Illuminance (center pixel / outer ring): 27,560 lux @ 5 m
  • Illuminance (center pixel): 20,300 lux @ 5 m
  • Illuminance (outer ring): 7,330 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Modes: 2
  • Dim Curves: 4

Construction / Physical

  • Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)
  • Weight: 31.96 lb (14.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

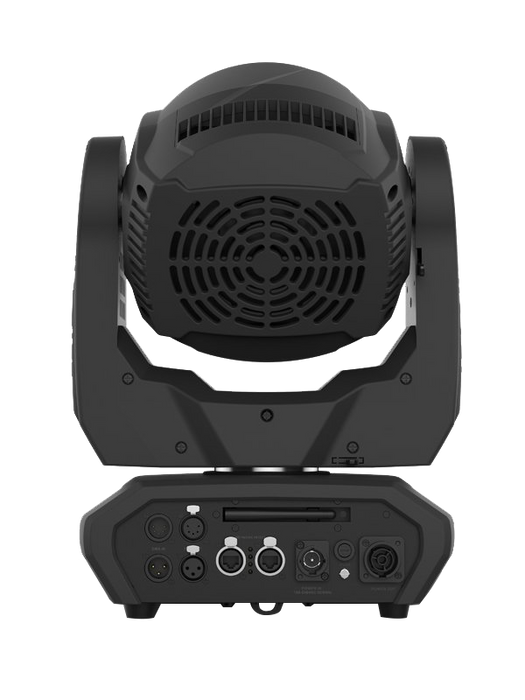

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, , Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
  • DMX Channels Single Mode: 26,66,113,131
  • DMX Channels Dual Mode – Function: 13,26,33
  • DMX Channels Dual Mode – Pixel: 30,40,80
  • Art-Net Channels Single Mode: 26,66,113,131
  • Art-Net Channels Dual Mode – Function: 13,26,33
  • Art-Net Channels Dual Mode – Pixel: 30,40,80

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
  • Power and Current: 262 W, 2.2 A @ 120 V, 60 Hz
  • Power and Current: 260 W, 1.2 A @ 208 V, 60 Hz
  • Power and Current: 223 W, 1.1 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

  • Maverick PYXIS
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

Optional Accessories

  • Professional Clamp: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX Cables
  • IP Rated Seetronic® Powerkon Extensions
