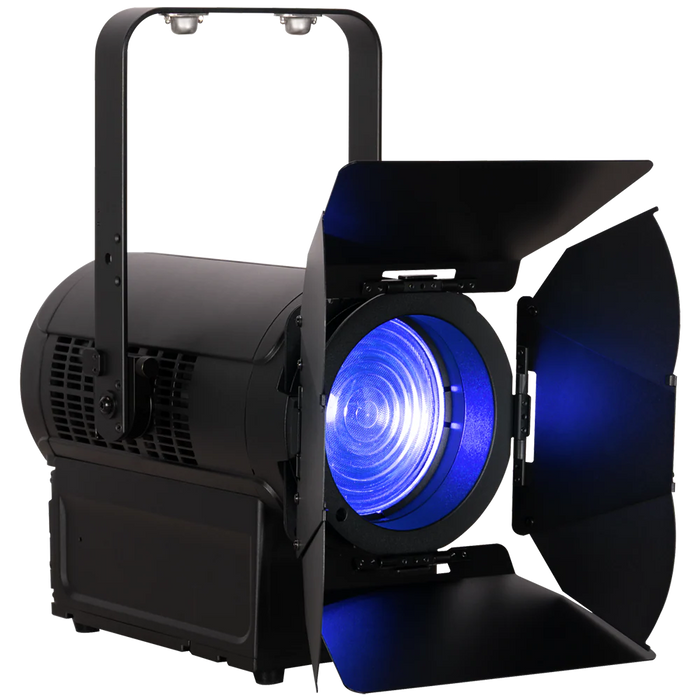

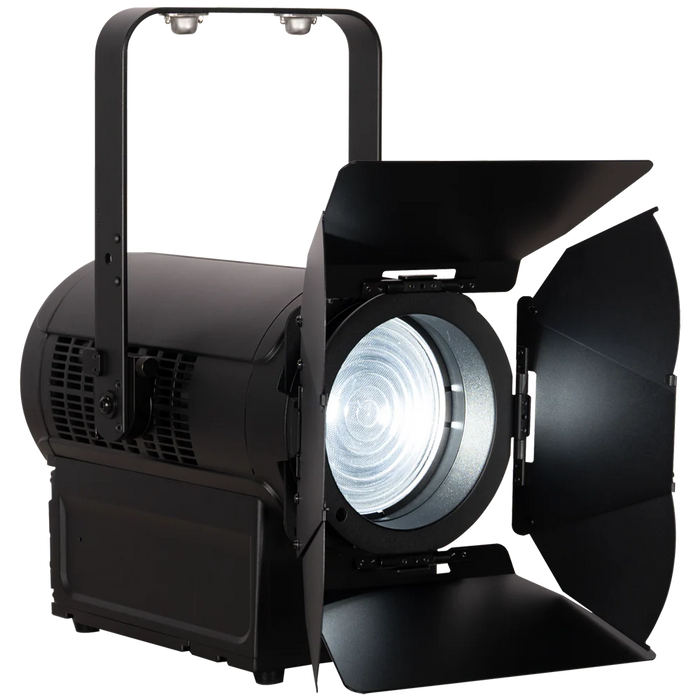

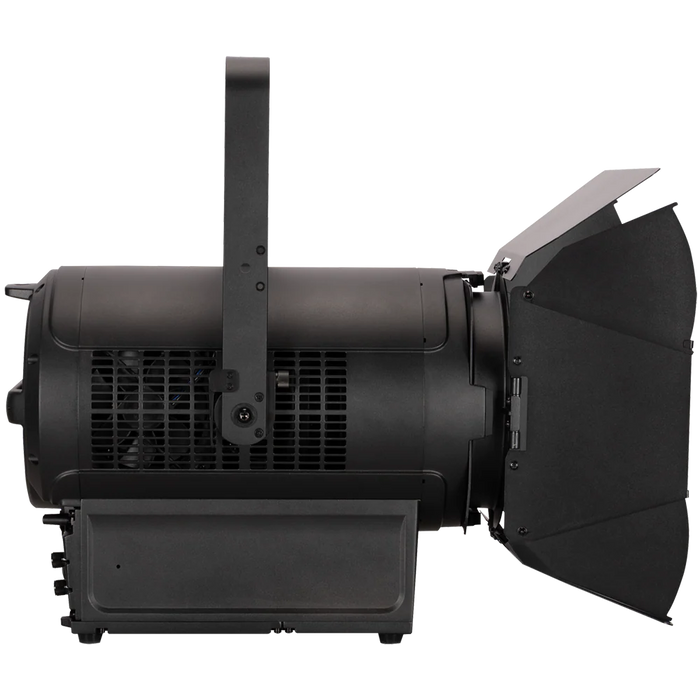

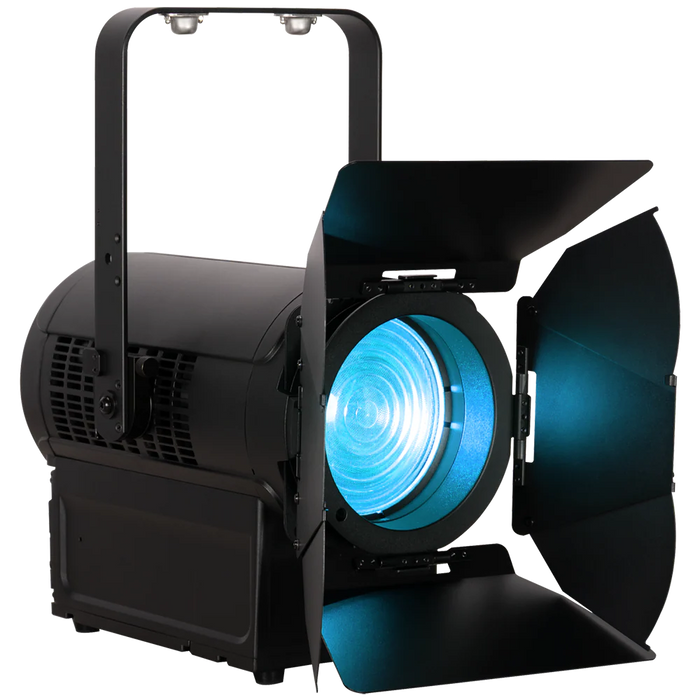

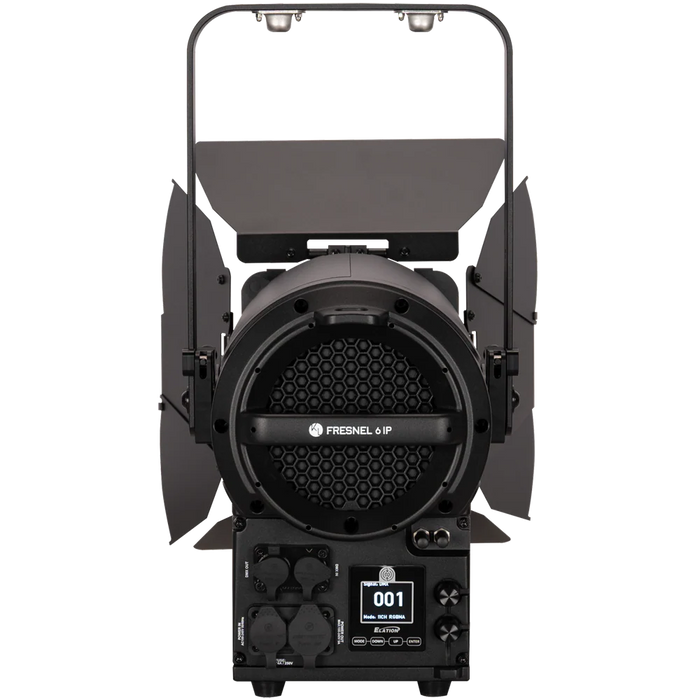

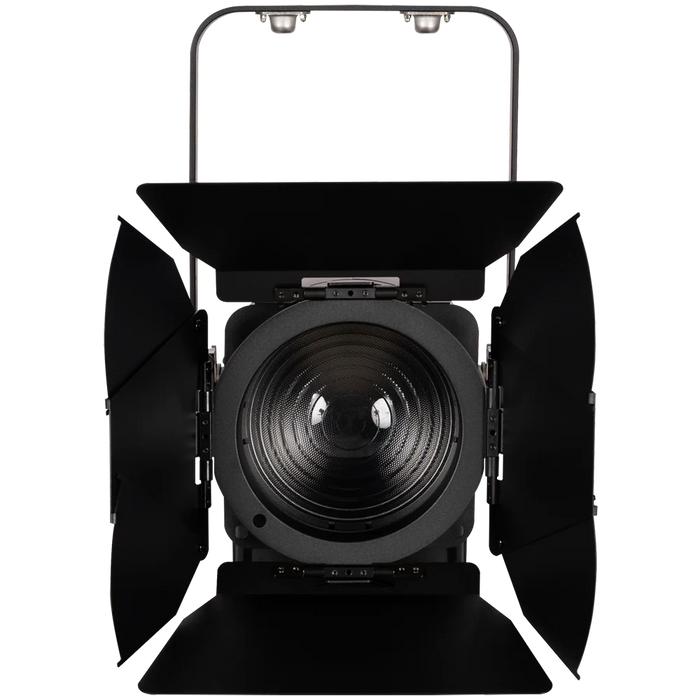

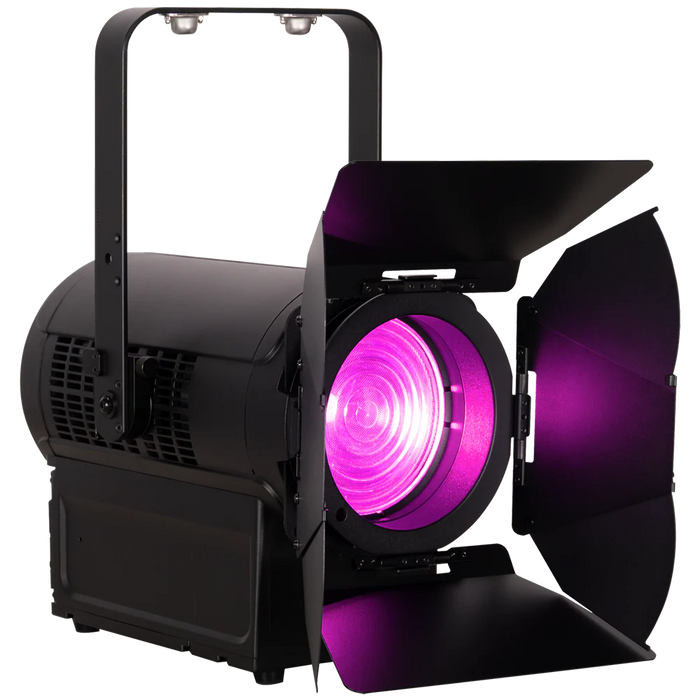

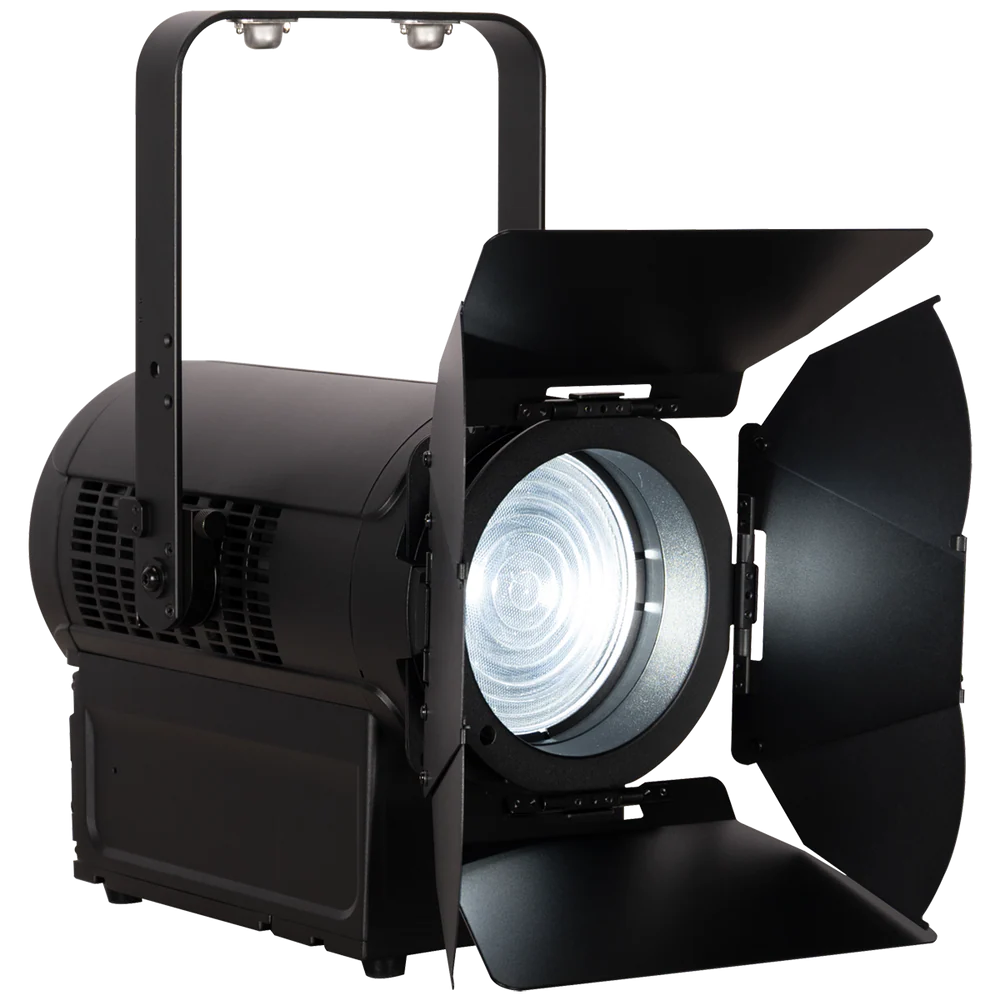

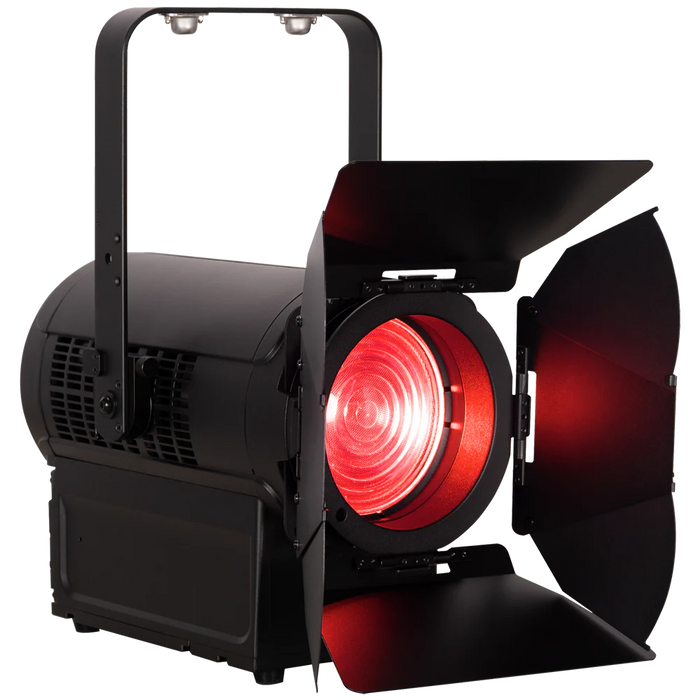

The KL Fresnel 6 IP delivers superior light quality in a compact, weather-ready 6-inch design—bringing natural Fresnel character, full-spectrum color, and modern workflow efficiency to any environment. Its 250W RGBMA engine produces over 7,400 lumens of balanced, full-spectrum output to ensure natural skin tones and accurate color. Variable CCT and magenta/green shift control make it ideal for film and television. An internal motorized 8°–60° zoom uses a source-moving mechanism to preserve classic Fresnel behavior with a smooth falloff that designers expect in a compact, easy-to-rig form. Smart setup tools, including NFC configuration, a rear-facing LCD interface with dual encoders, and Aria X2 wireless DMX, streamline operation from prep to programming. With its lightweight IP65 housing and five selectable fan modes, the KL Fresnel 6 IP supports everything from outdoor stages to camera-critical studio work while reducing maintenance and downtime—all while maintaining the timeless look and feel of a true Fresnel.

  • 250W RGBMA LED Engine7,400 Total Fixture Lumen Output (Sphere)
  • Wide 8° to 60° Motorized Zoom Range
  • Stand-Alone control with 2 Encoders and LED Display
  • NFC & Aria x2 Wireless Device Management
  • IP65 Rated
  • Gel Frame & 8-leaf Barndoor Included

Specifications

Source

  • 250W 6000K RGBMA LED Engine
  • 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

  • Total Lumen Output 7400 (Integrating Sphere)
  • TBA(Goniometer)
  • CRI: 94
  • TLCI: 95
  • Zoom Range: 8° - 60°
  • Beam Angle: 7.5° - 42°
  • Field Angle: 12° - 60°

Effects

  • Motorized Zoom
  • Variable Strobe Rate: 1- 20Hz
  • Dim-to-Warm/ Red Shift Emulation
  • Variable 16-bit Dimming Modes and Curves
  • DMX Controllable LED Refresh Rate: (900Hz- 25kHz)

Color

  • RGBMA Color Array
  • CMY Emulation
  • x/y Control
  • 16bit Fully Variable CCT: 2400K - 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Control/Connections

  • 8 DMX Channel Modes (1 ,5, 7, 11, 12, 20, 10, 16, 14)
  • Manual and DMX Controlled Dimmer. Color & Zoom
  • 4 DMX Controllable Fan Modes for Silent Operation
  • Dual Rotary Encoders
  • Full Color 180° Reversible LCD Menu Display
  • RDM (Remote Device Management)
  • Aria x2 Wireless Device Management
  • NFC Configuration
  • IP65 5pin DMX and IP65 Locking Power Cable In/Out

Size/Weight

  • Length: 15.8” (401 mm)
  • Length (Yoke 0°): 19.4” (494 mm)
  • Width: 11.9” (301 mm)
  • Height (Fixture Body): 11.9” (302 mm)
  • Height (Yoke 90°): 19.7” (500 mm)
  • Weight: 21.8 lbs (9.9 kg)

Electrical/Thermal

  • AC 100-240V - 50/60Hz
  • 268W Max Power Consumption
  • Power Thru Capacity: 4A (1 unit @115V, 3 units @240V)
  • 5°F to 113°F (-15°C to 45°C)
  • BTU/hr (+/- 10%) 913.8

Included Items

  • Gel Frame
  • Safety Cable
  • Barndoor
  • IP65 Locking Power Cable

Optional Items

  • Omega Bracket

Approvals/Ratings

  • CE
  • cETLus
  • IP65
  • FCC
  • UKCA
