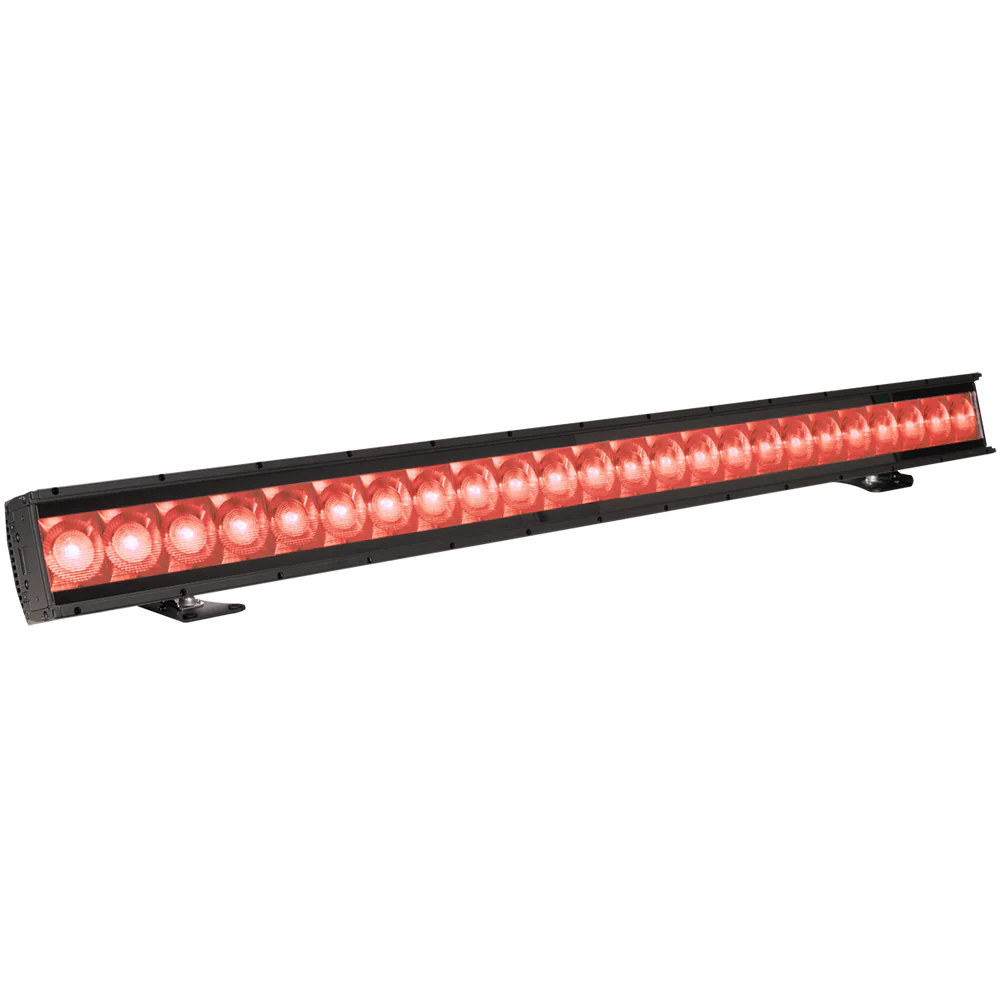

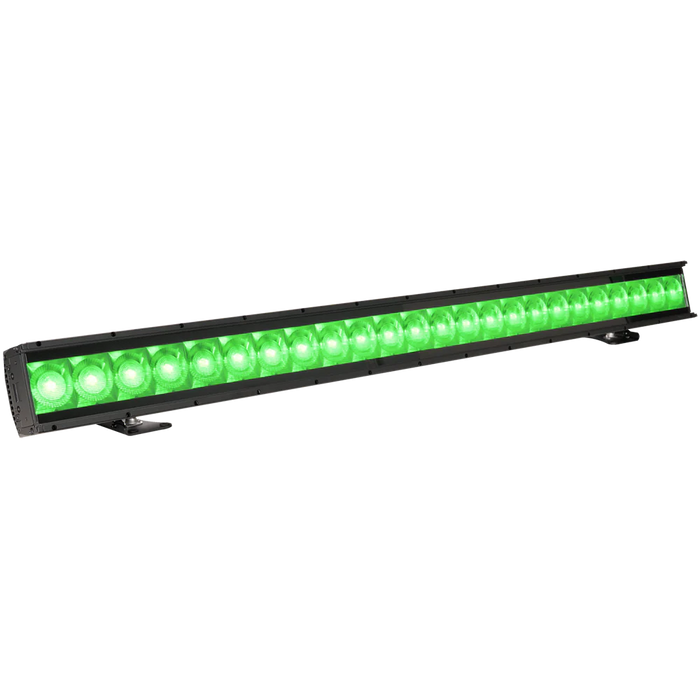

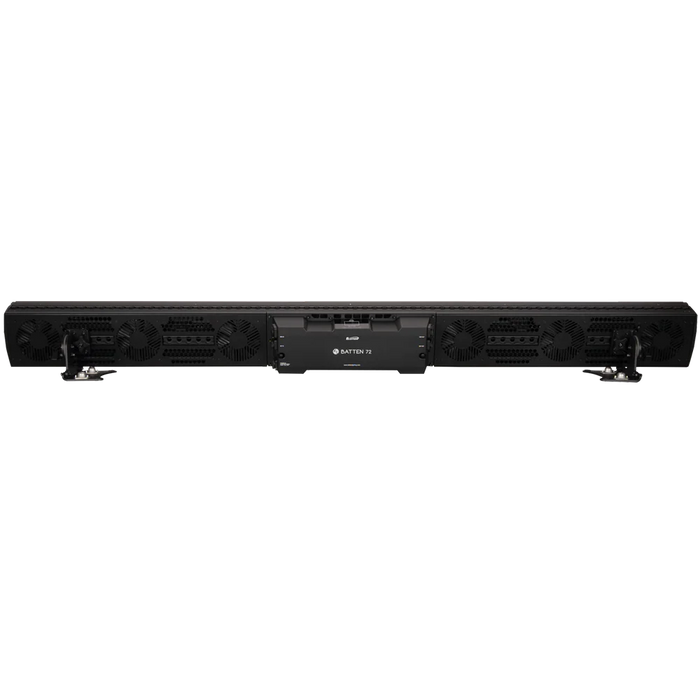

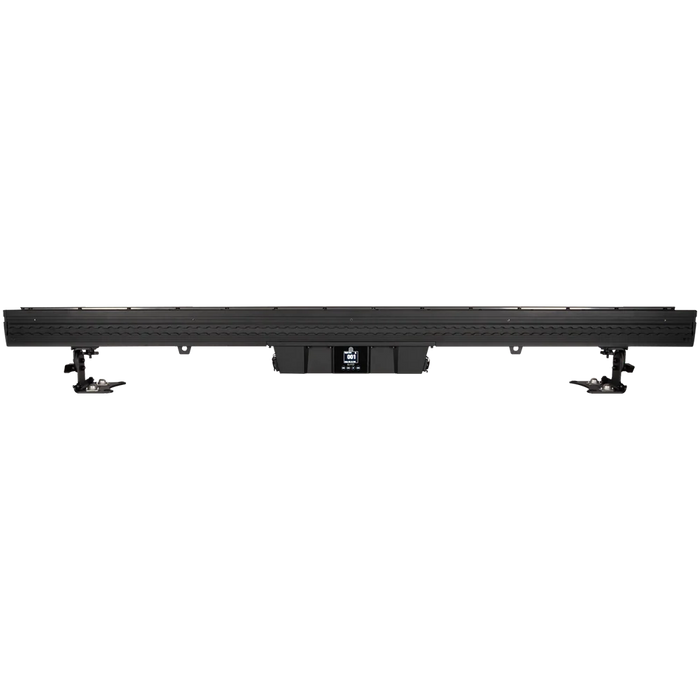

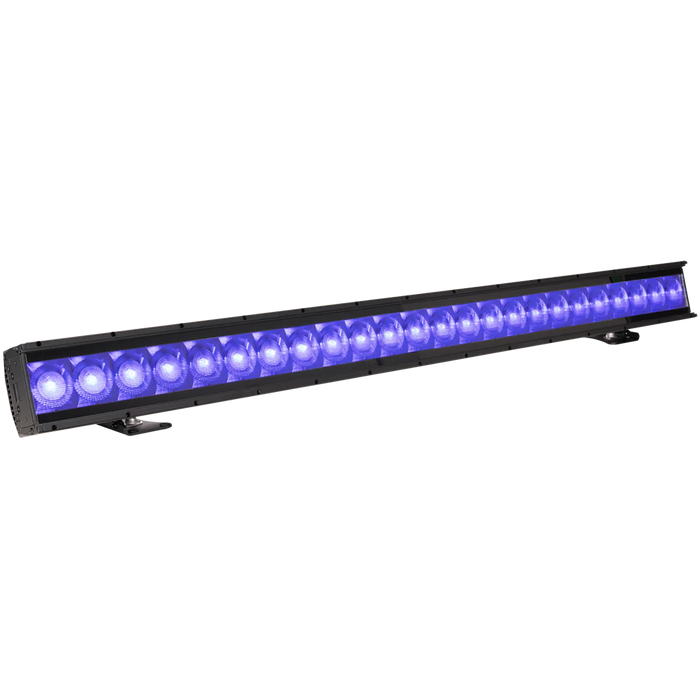

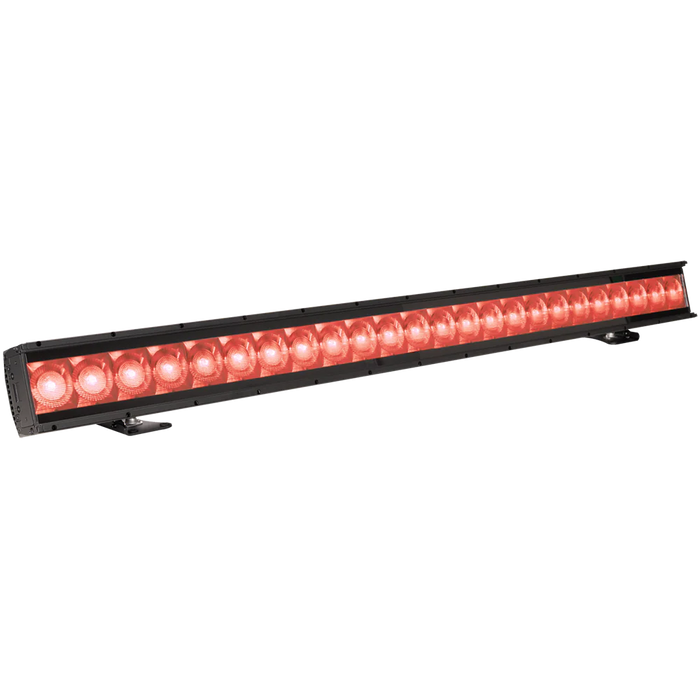

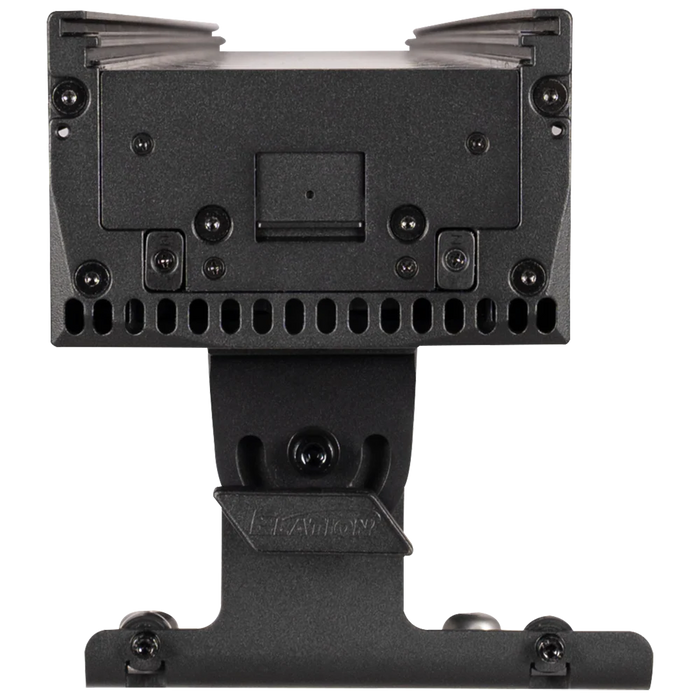

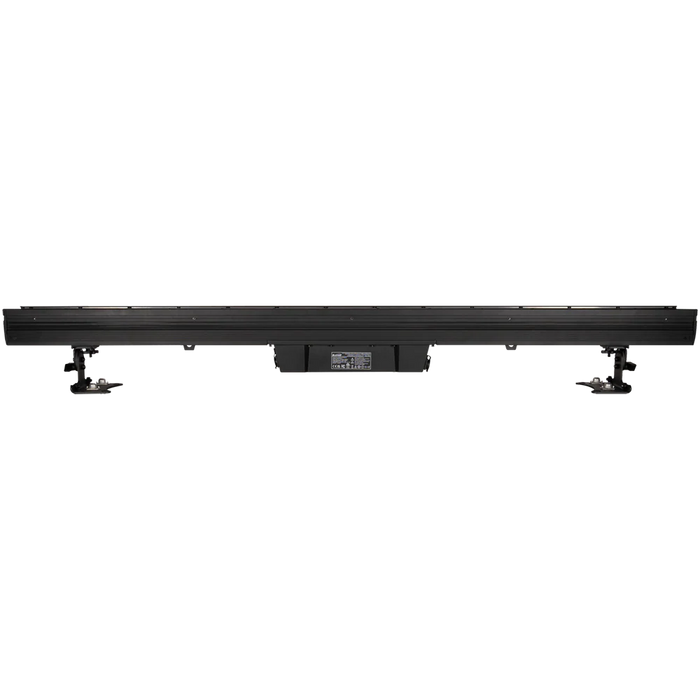

KL Batten 72

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output. Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 71,250 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks. A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control options ensure reliable performance—from subtle color shifts to complex pixel-mapped effects. For designers who rely on both power and precision, the KL BATTEN 72 delivers the bold, consistent results that anchor any professional lighting design.

• (24) 100W RGBMA LED Array
• 71,347 Total Fixture Lumen Output (Sphere)
• Full Pixel Control
• Integrated Lens and Accessory Slots
• Art-Net & sACN Support
• Integrated L Track for Flexible Mounting
• End-to-End Magnetic Alignment System
• NFC & Aria x2 Wireless Device Management
• IP65 Rated

Specifications

Source

• (24) x 100W RGBMA LEDs
• 30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

• Total Lumen Output: 71,347 (Integrating Sphere)
• CRI: 94.9
• TLCI: 95
• Beam Angle: 82° x 22°
• Field Angle: 97° x 53°

Effects

• Full Pixel Control
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

Color

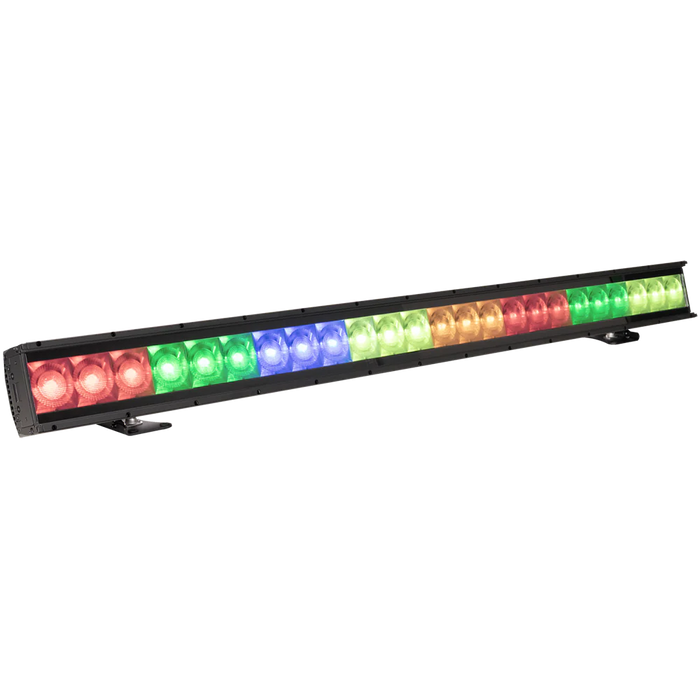

• RGBMA Color Array
• CMY Emulation
• 16bit Fully Variable CCT: 2400K - 8500K
• Green/Magenta Shift
• Dim-to-Warm Fade
• Virtual Gel Swatch Book

Control/Connections

• 52 DMX Channel Modes: (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 36ch, 48ch-A, 48ch-B, 120ch, 80ch, 142, 72ch, 96ch-A, 96ch-B, 240ch, 152ch, 174ch)
• 4 Button Control Panel, Color LED Display
• RDM (Remote Device Management)
• Aria x2 Wireless Device Management
• NFC Configuration
• IP65 5pin XLR DMX In/Out
• IP65 RJ45 Ethernet In/Out (Art-Net & sACN)
• IP65 Locking Power Cable In

Size/Weight

• Length: 71.1" (1806mm)
• Width: 5.8" (148mm)
• Vertical Height: 8.5” (216mm)
• Weight: 60.4 lbs / 27.4kg

Electrical/Thermal

• AC 100-240V - 50/60Hz
• 1200W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%): 4,092

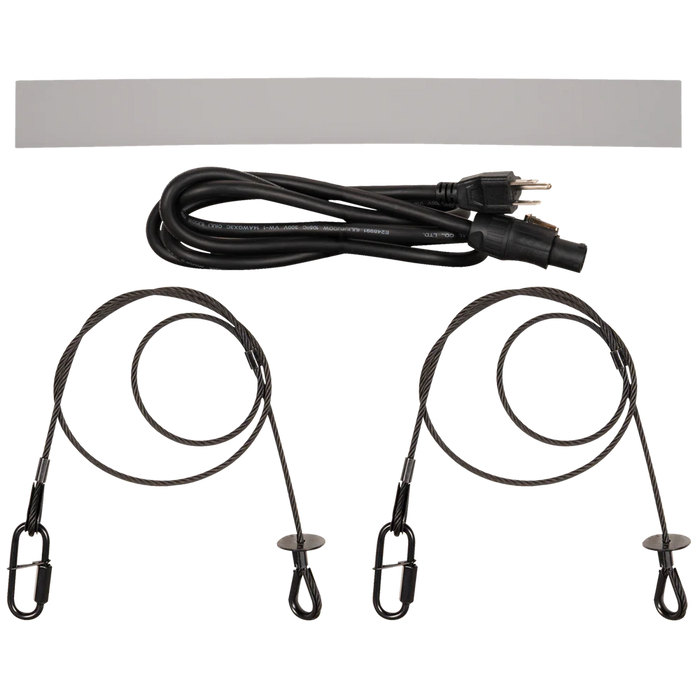

Included Items

• Glare Shield
• Border Light Filter
• 2x Safety Cable
• IP65 Locking Power Cable

Optional Items

• Omega Bracket (Qty. 2)
• L-Track to M10 Adapter, 70mm (LTR001)
• L-Track to M10 Adapter, 44.5mm (LTR008)
• L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
• L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
