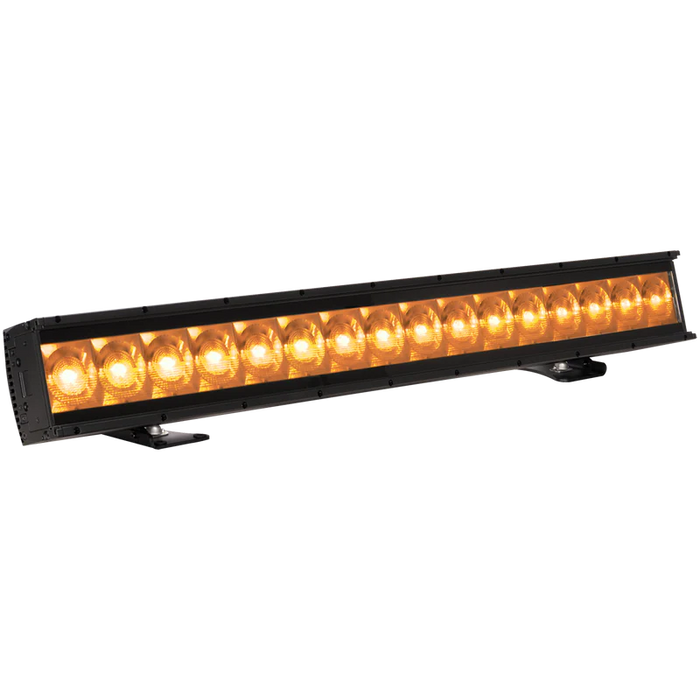

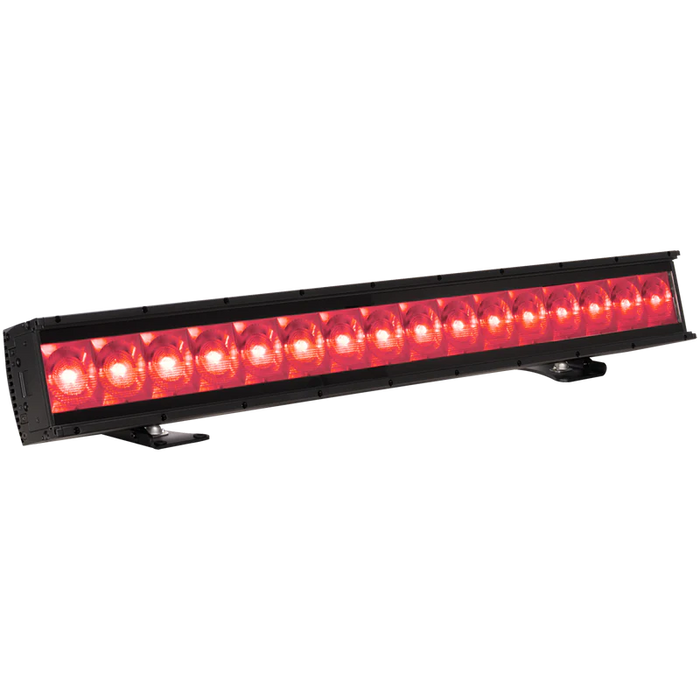

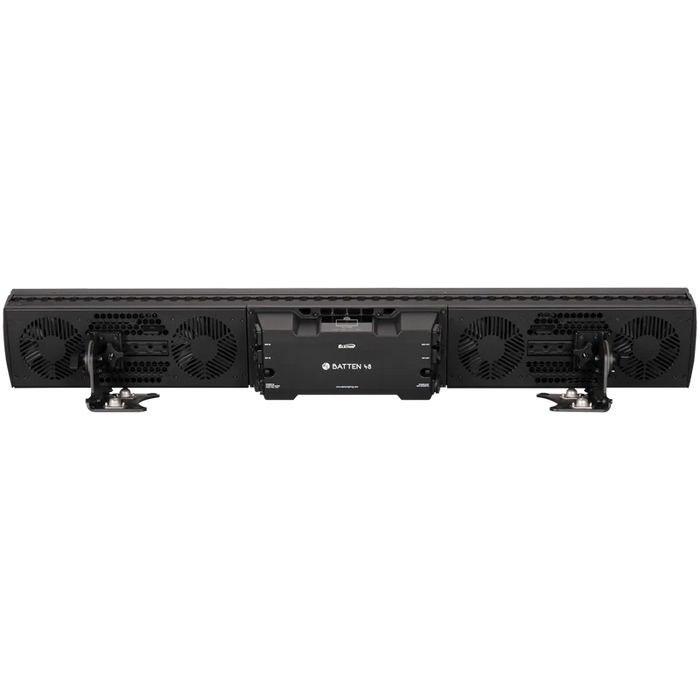

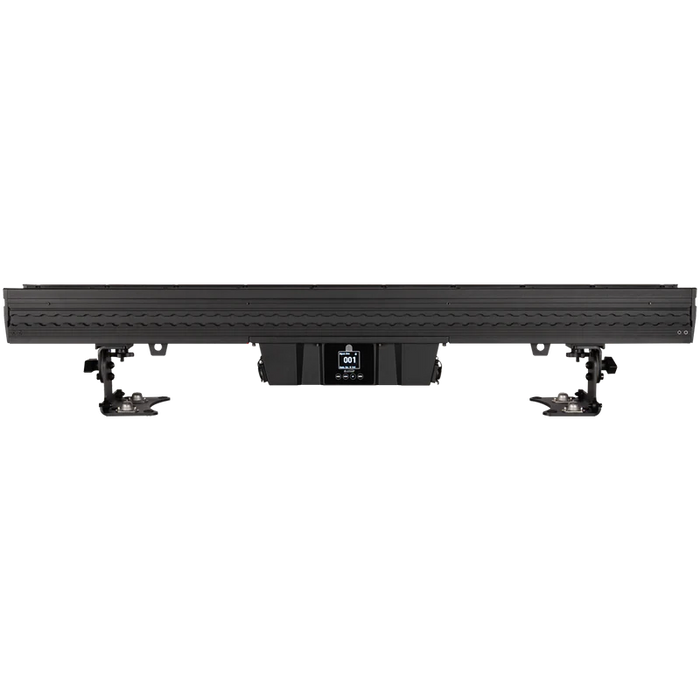

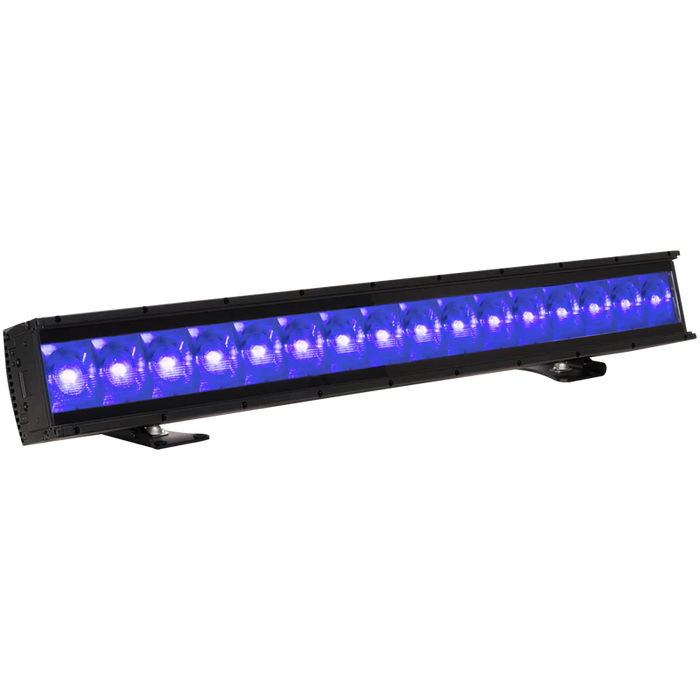

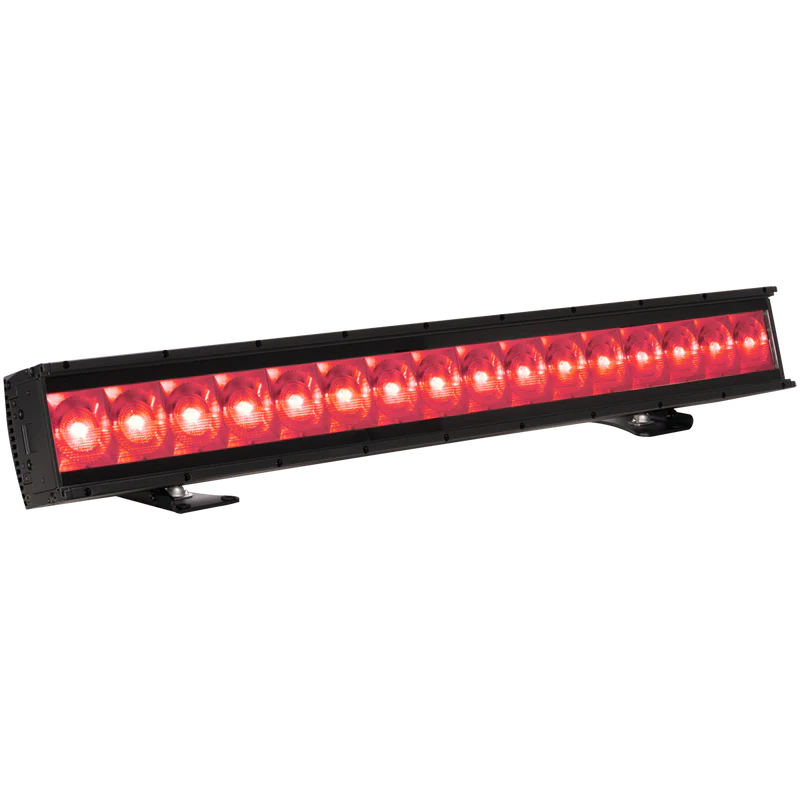

KL Batten 48

Perfect for the grandest stage and the great outdoors, the powerful KL BATTEN 48 delivers over 46,500 lumens of smooth, even light. The RGBMA LED engine and its homogeneous beam produces natural, full-spectrum light, with a high CRI that looks good on stage and in the studio. Its adaptable L-Track design makes mounting simple, while seamless control options and quiet cooling ensure professional performance in any environment. Paired with IP-65 protection, it’s the dependable, full-spectrum workhorse that keeps creative intent intact from rehearsal to showtime.

• (16) 100W RGBMA LED Array
• 46,744 Total Fixture Lumen Output (Sphere)
• Full Pixel Control
• Integrated Lens and Accessory Slots
• Art-Net & sACN Support
• Integrated L Track for Flexible Mounting
• End-to-End Magnetic Alignment System
• NFC & Aria x2 Wireless Device Management
• IP65 Rated

Specifications

Source

• (16) x 100W RGBMA LEDs
• 30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

• Total Lumen Output: 46,744 (Integrating Sphere)
• CRI: 94.9
• TLCI: 95
• Beam Angle: 62° x 21°
• Field Angle: 79° x 51°

Effects

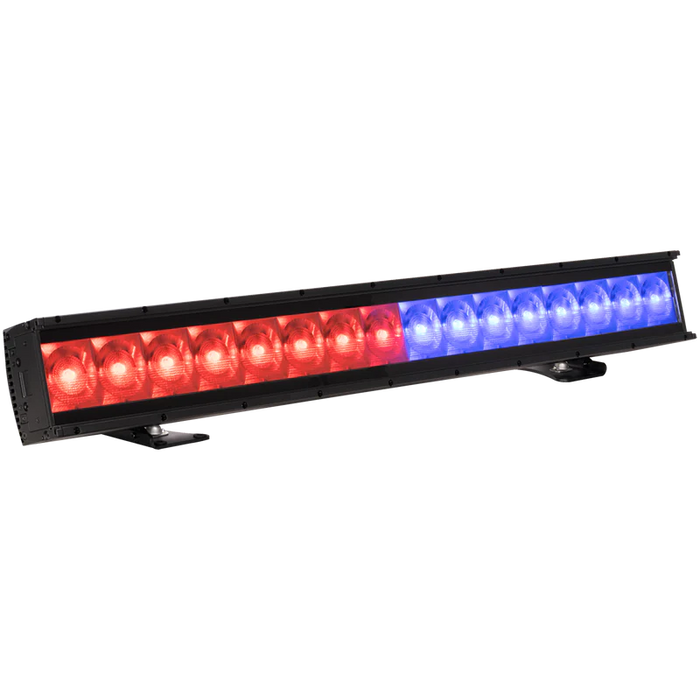

• Full Pixel Control
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

Color

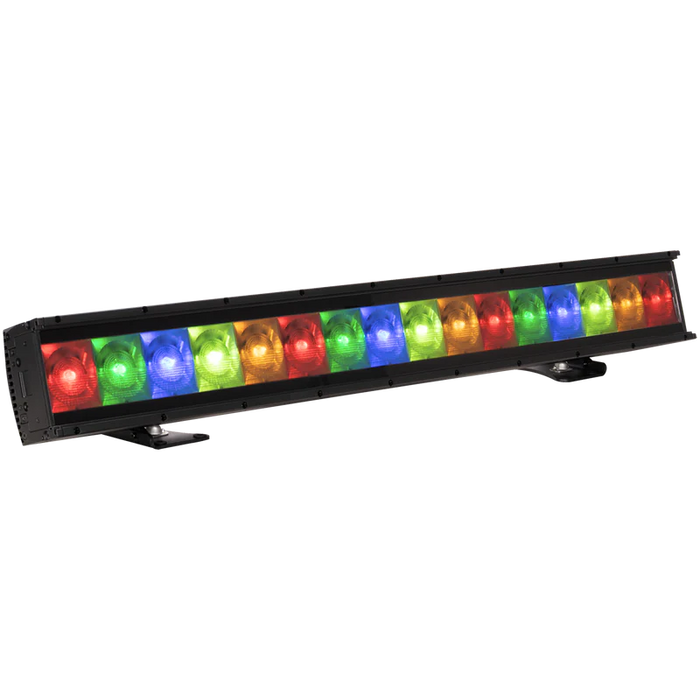

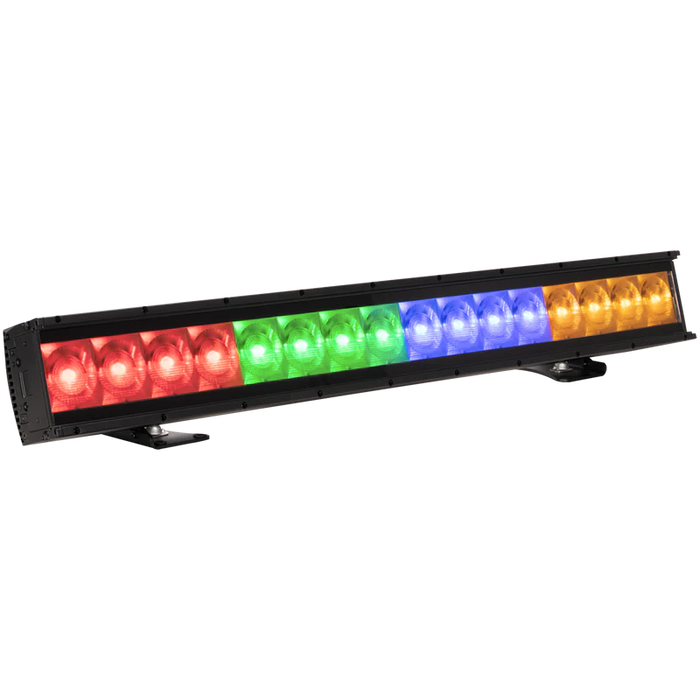

• RGBMA Color Array
• CMY Emulation
• 16bit Fully Variable CCT: 2400K - 8500K
• Green/Magenta Shift
• Dim-to-Warm Fade
• Virtual Gel Swatch Book

Control/Connections

• 34 DMX Channel Modes: (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 48ch, 64ch-A, 64ch-B, 160ch, 104ch, 186ch)
• 4 Button Control Panel, Color LED Display
• RDM (Remote Device Management)
• Aria x2 Wireless Device Management
• NFC Configuration
• IP65 5pin XLR DMX In/Out

Size/Weight

• Length: 47.7" (1212mm)
• Width: 5.8" (148mm)
• Vertical Height: 8.5” (216mm)
• Weight: 43 lbs / 19.5kg

Electrical/Thermal

• AC 100-240V - 50/60Hz
• 800W Max Power Consumption
• Power Thru Capacity: 4A (0 units @110V; 1 unit @240V)
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%): 2,728

Included Items

• Glare Shield
• Border Light Filter
• 2x Safety Cable
• IP65 Locking Power Cable

Optional Items

• Omega Bracket (Qty. 2)
• L-Track to M10 Adapter, 70mm (LTR001)
• L-Track to M10 Adapter, 44.5mm (LTR008)
• L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
• L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
