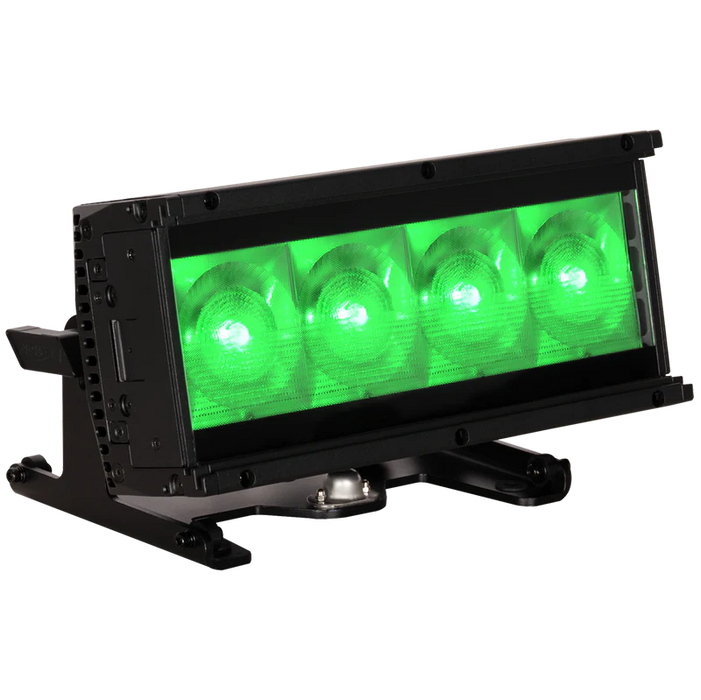

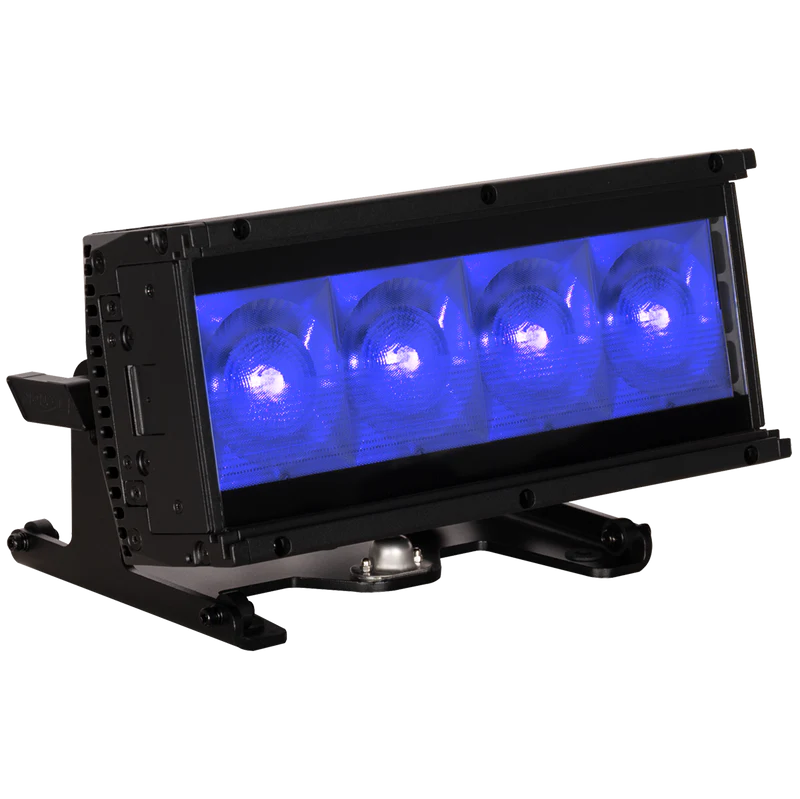

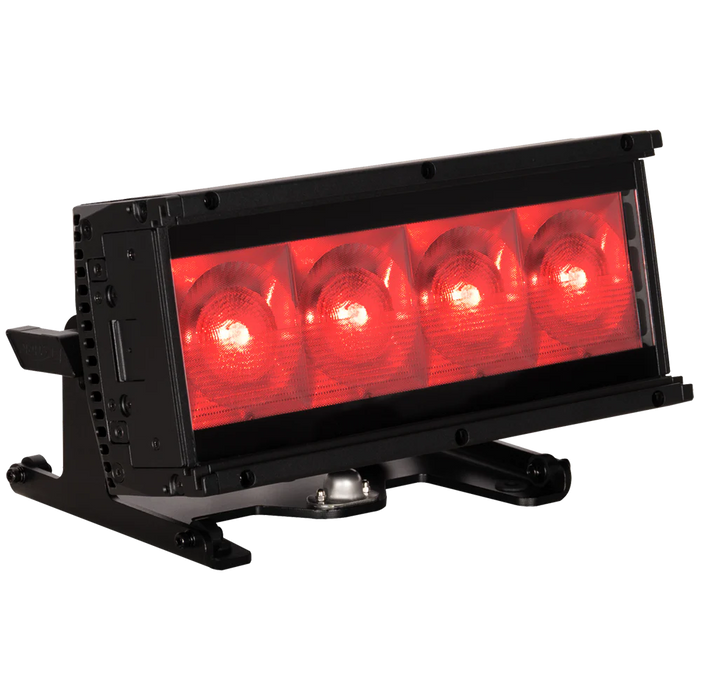

Delivering rich, full-spectrum color and over 10,500 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design. Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field. An IP-65 rating means it can be used nearly anywhere. Its quiet operation, intuitive control, and flexible mounting options make it a versatile, reliable, and colorful addition to any rig.
- (4) 100W RGBMA LED Array
- 10,981 Total Fixture Lumen Output (Sphere)

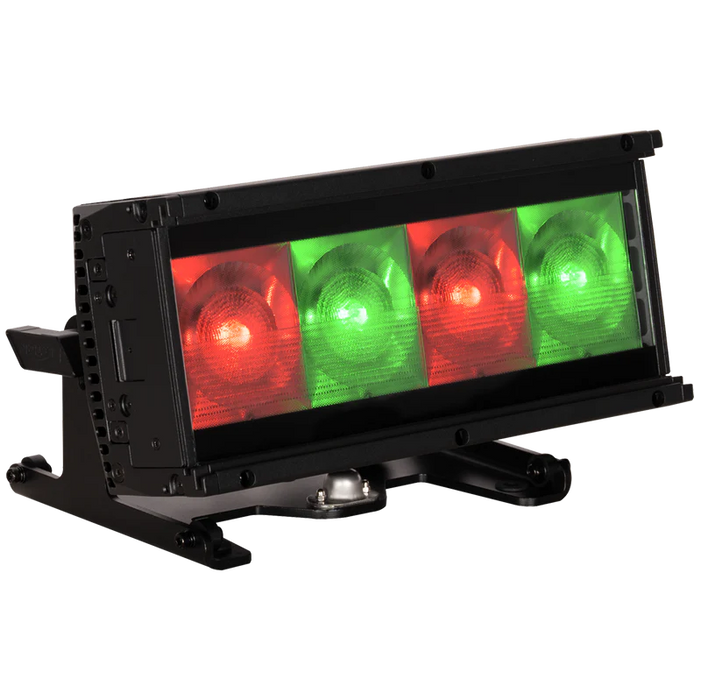

- Full Pixel Control

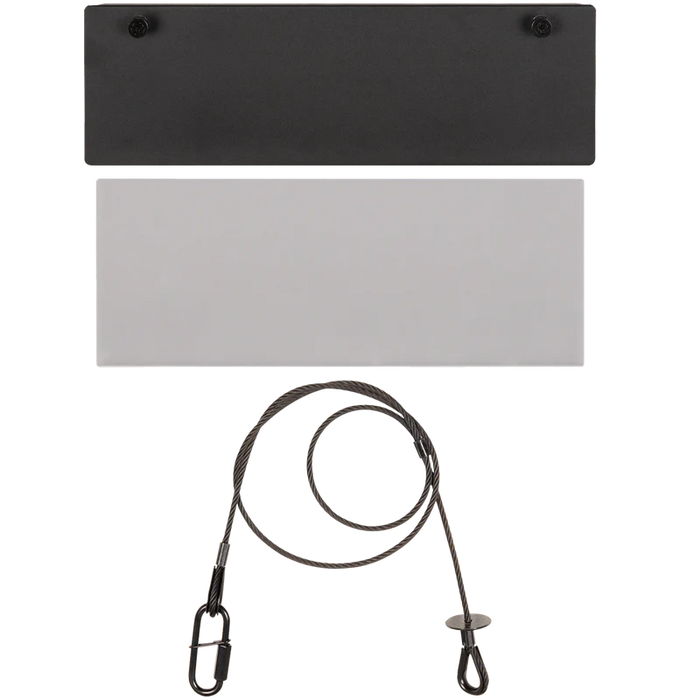

- Integrated Lens and Accessory Slots
- Art-Net & sACN Support
- Integrated L Track for Flexible Mounting
- End-to-End Magnetic Alignment System
- NFC & Aria x2 Wireless Device Management
- IP65 Rated
Specifications
Source
- (4) x 100W RGBMA LEDs
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
-
Total Lumen Output: 10,981 (Integrating Sphere)
-
CRI: 94.9
-
TLCI: 95
-
Beam Angle: 22° x 20°
-
Field Angle: 44° x 42°
Effects
- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
Color

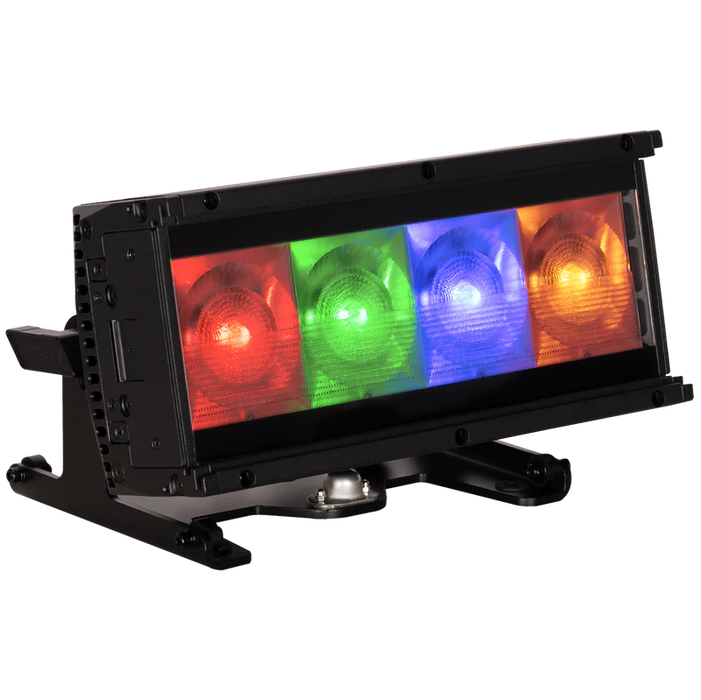

- RGBMA Color Array
- CMY Emulation
-
16bit Fully Variable CCT: 2400K - 8500K
- Green/Magenta Shift
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
Control / Connections
-
22 DMX Channel Modes: (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch)
- 4 Button Control Panel, Color LED Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin XLR DMX In/Out
Optional Items
- 90deg Slotted Omega Bracket (OB-107-90B) (Qty.1)
- L-Track to M10 Adapter, 70mm (LTR001)
- L-Track to M10 Adapter, 44.5mm (LTR008)
- L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
- L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
