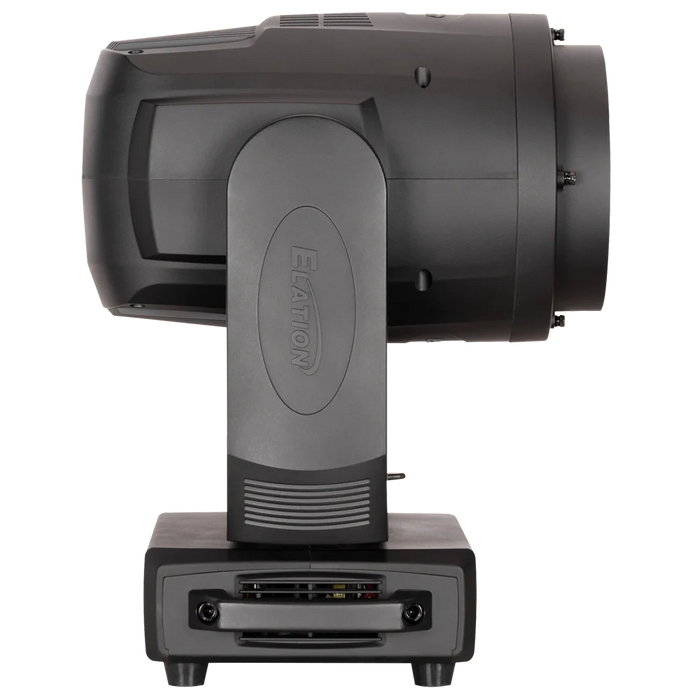

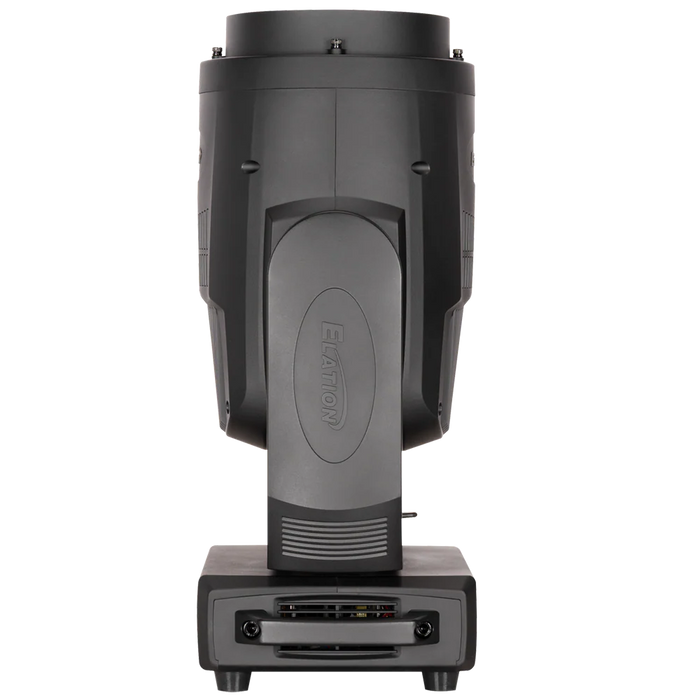

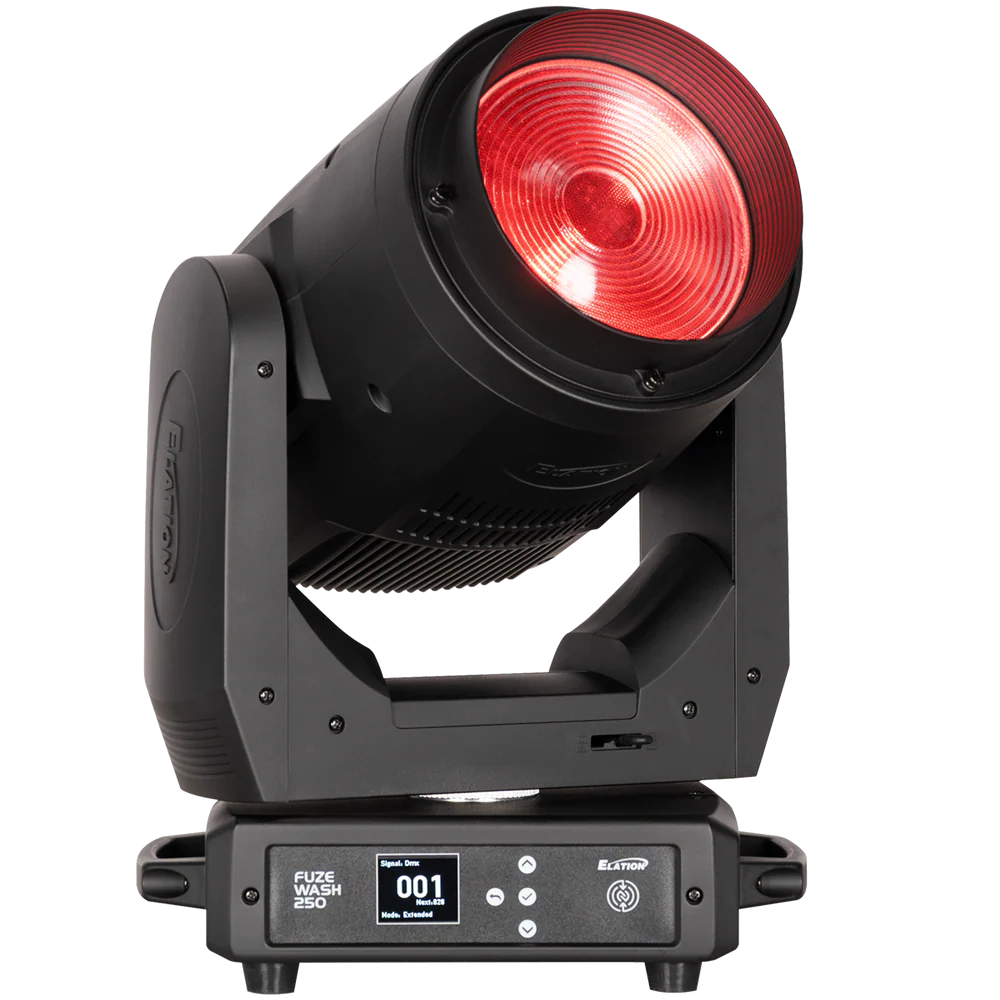

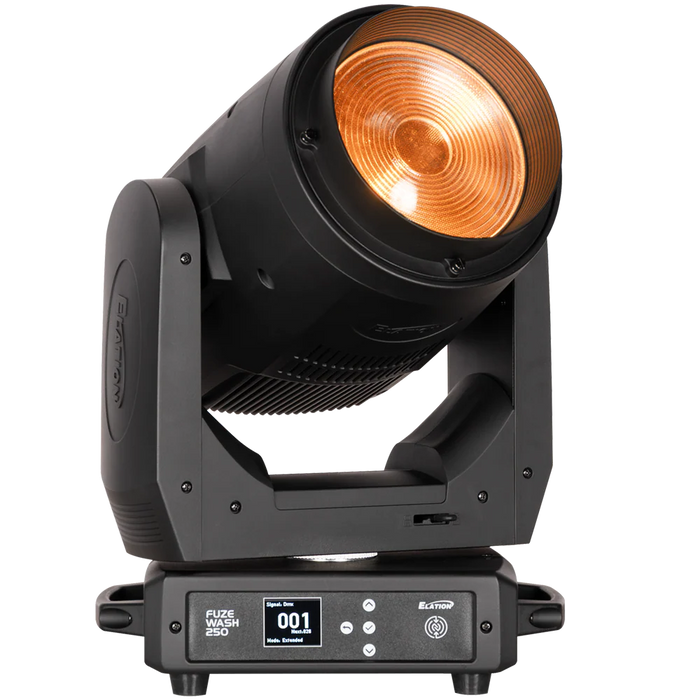

The FUZE WASH 250™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 8500 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.
The FUZE WASH 250 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required.
- 250W Full Spectrum RGBMA LED Engine
- Up to 8500 Total Lumen Fixture Output @ 6500K
- CRI up to 92
- Wide Zoom Range from 6° to 50°
- CMY Emulation
- Virtual Color Correction
- Green/Magenta Shift
- Virtual Gel Swatch Book
- NFC & Aria x2 Wireless Device Management
Specifications
Source
- 250W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
- 30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data
- 8500 Total Lumen Fixture Output
- CRI: 92
- Zoom Range: 6° - 50°
- Field Angle: 13.9° - 55.8°
- Beam Angle: 8.4° - 43.6°
Effects
- Motorized Zoom
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
Color

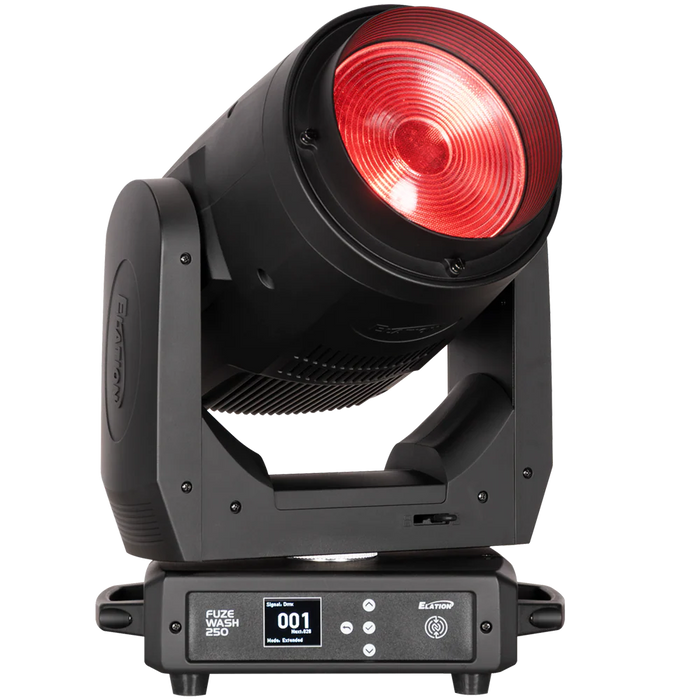

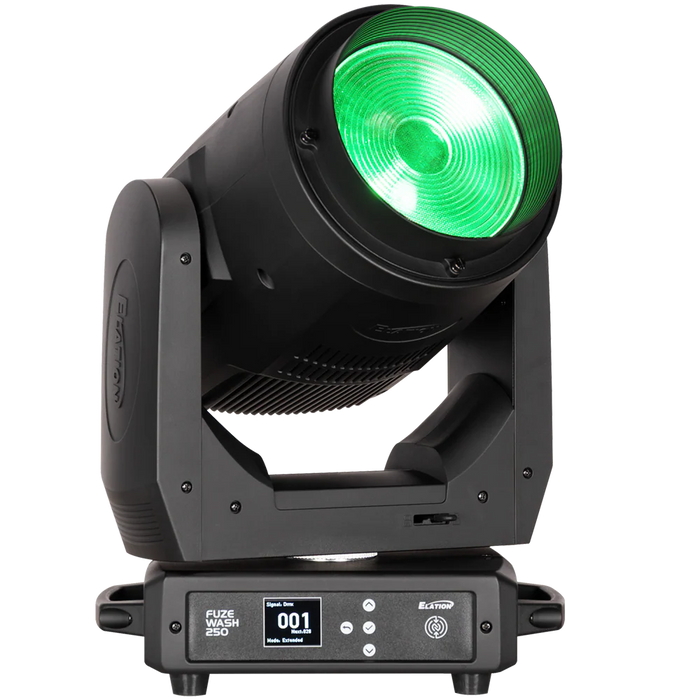

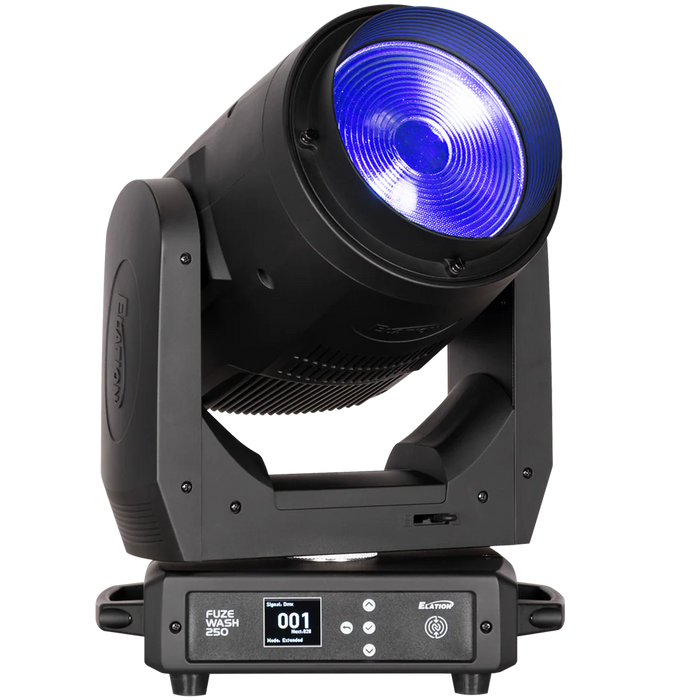

- RGBMA Color Array
- CMY and RGB Emulation

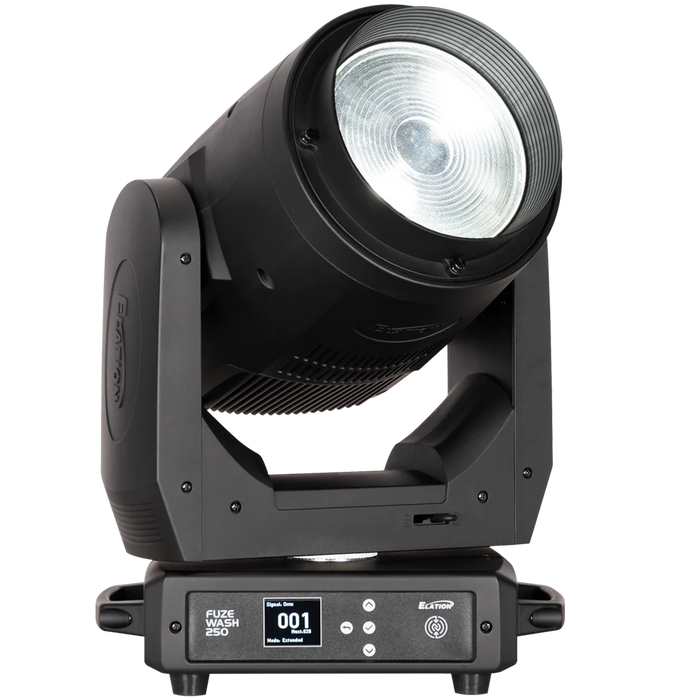

- Variable CCT: 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
Control/Connections
- RGBMA, RGB, CMY, DMX Channel Modes
- 16-bit Pan, Tilt, and Dimming Control
- DMX Adjustable LED Frequency
- 4 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Art-Net and sACN Protocol Support
- Aria x2 Wireless Device Management
- NFC Configuration

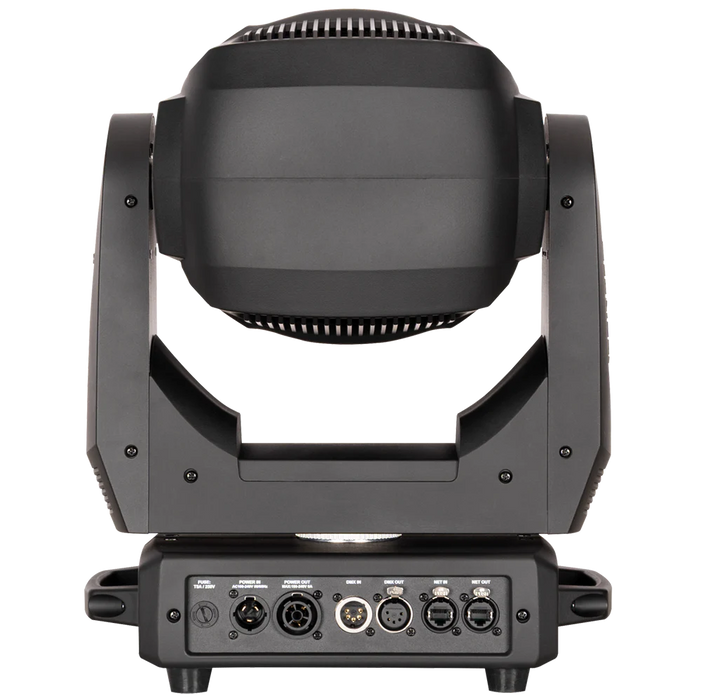

- Locking 5pin XLR Connector In/Out
- Locking IP65 Power Connector In/Out
- RJ45 Ethernet In/Out (Art-Net & sACN)
Size/Weight
- Length: 8.2” (208mm)
- Width: 12.9” (327mm)
- Vertical Height: 18.1” (459mm)
- Vertical Height w/Snoot: 19.4" (493mm)
- Weight: 24.8lbs. (11.3kg)
Electrical/Thermal
- AC 100-240V - 50/60Hz
- Maximum Power Consumption: 350 W
- 14°F to 113°F (-10°C to 45°C)
Approvals/Ratings
- CE
- cETLus
- IP20
- FCC
