ElectraPix Par 7 Pak

Introducing the ElectraPix Par 7 Pak, a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.

Key Components:

1. ElectraPix Par 7 Lights (x6): Unleash the power of six ElectraPix Par 7 lights, each equipped with state-of-the-art LED technology. These lights deliver vivid and customizable colors, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.


2. Charging Bases (x6): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Par 7 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.


3. UC-IR24 Remote Control (x1): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colors, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.


4. Outdoor Locking Power Cable (x6): Designed for durability and reliability, the outdoor locking power cables ensures a secure and weather-resistant connection.

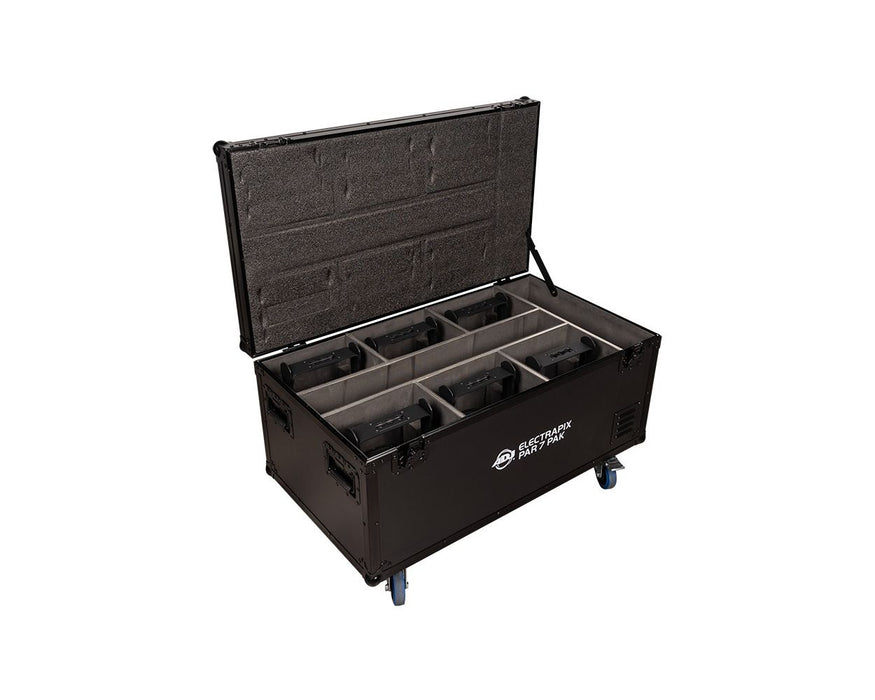

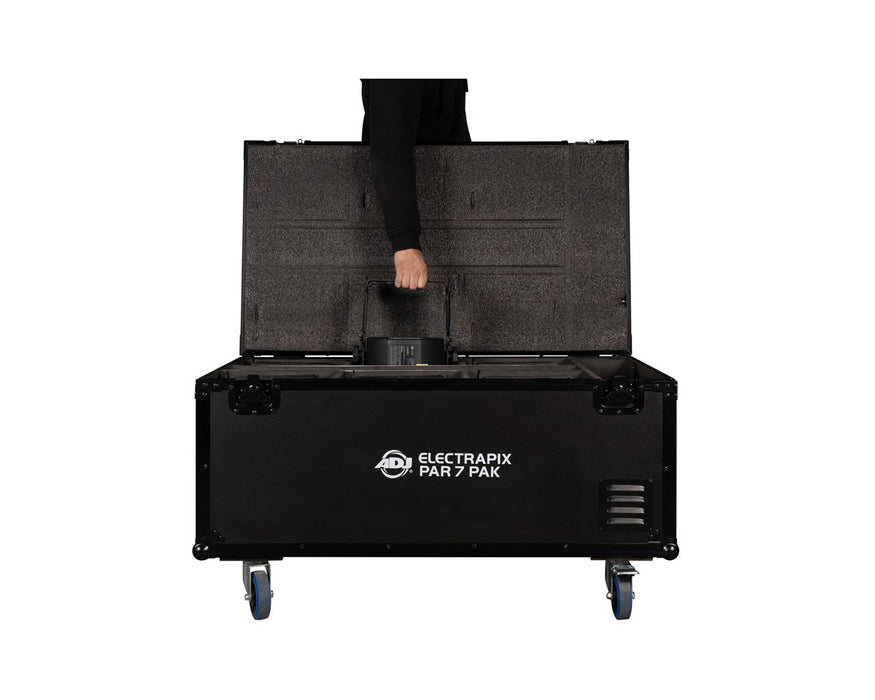

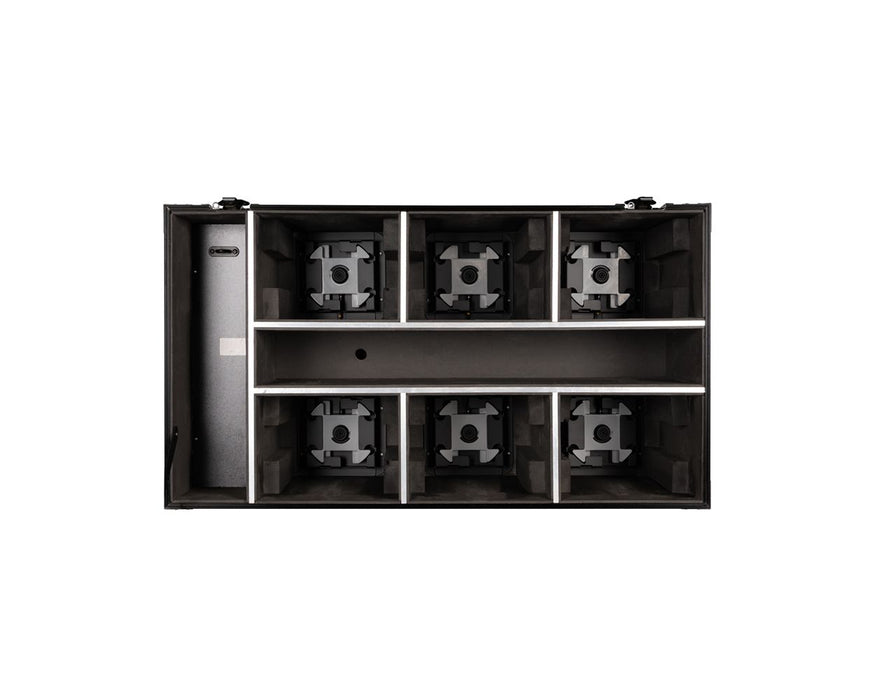

5. ElectraPix Par 7 FC (Flight Case) (x1): Safeguard your investment and transport your equipment with ease using the ElectraPix Par 7 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 22.7" x 40.4" x 22.3" (577x1026x567mm) ensure that your lighting setup remains protected during transit.

With the ElectraPix Par 7 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for professionals and enthusiasts alike. Illuminate your world and captivate your audience with the power of ElectraPix Par 7.

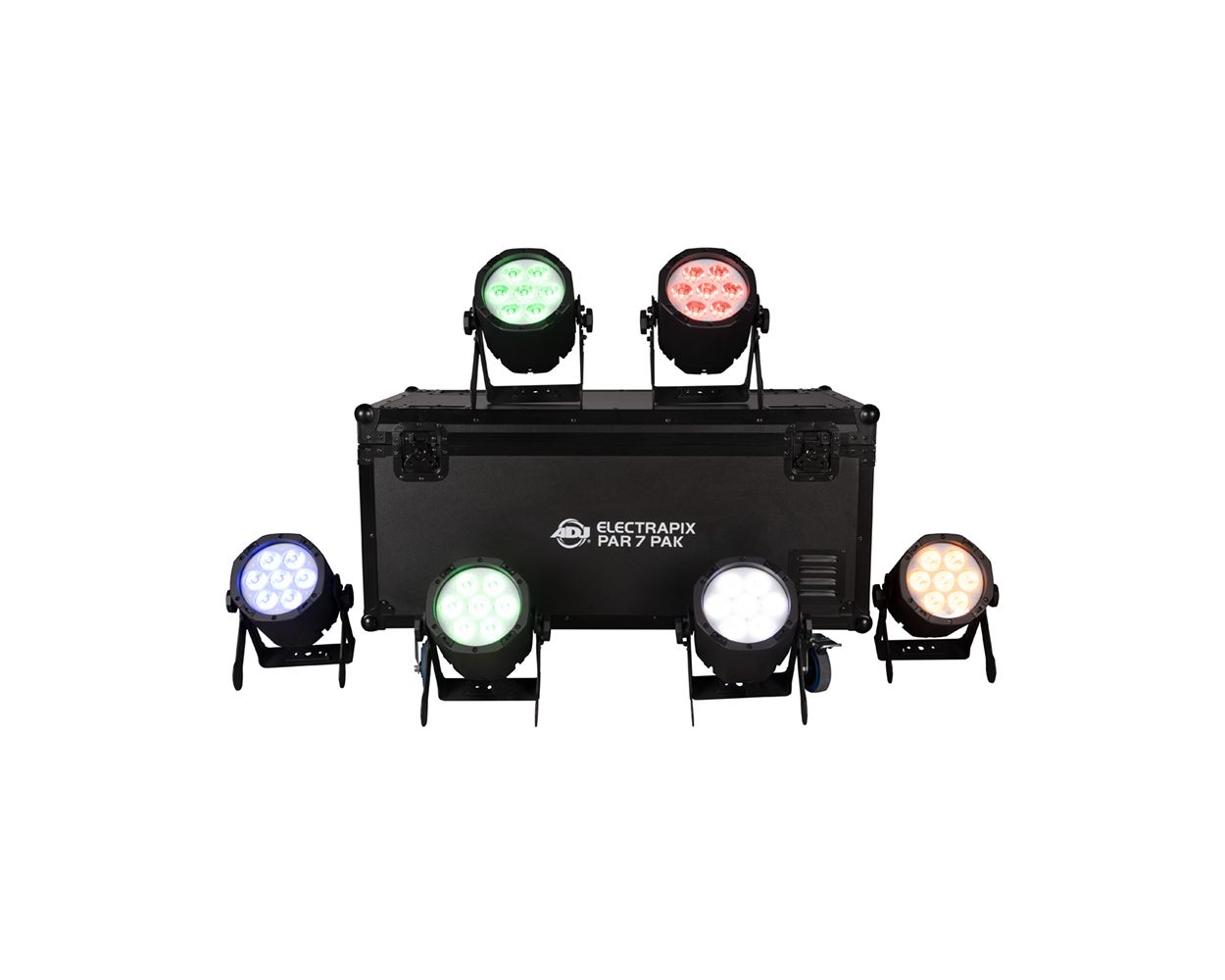

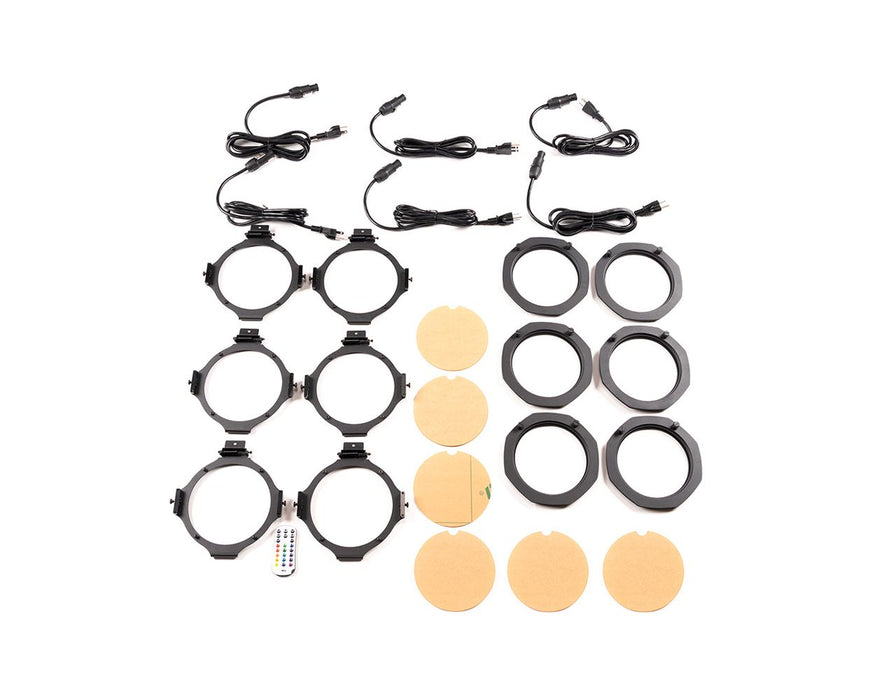

ElectraPix Par 7 Pak Includes

• (6) ElectraPix Par 7 (Fixtures)
• (1) ElectraPix Par 7 FC (Flight Case)
• (6) ElectraPix Par 7 IPCB (Charging bases and power supplies)
• (1) UC-IR24 Wireless Infrared Controller
• (6) IP65 Locking Power Cable

ElectraPix Par 7 Pak Features

• Houses / Transports and Charges (6) ElectraPix Par 7™ fixtures

ElectraPix Par 7 Pak Dimensions / Weight (loaded case (Must be used with 6 fixtures)

• Length: 40.4" (1026 mm)
• Width: 22.7" (577 mm)
• Vertical Height: 22.3" (567 mm)
• Loaded Weight: 197.3 Ibs. (89.5 kg)

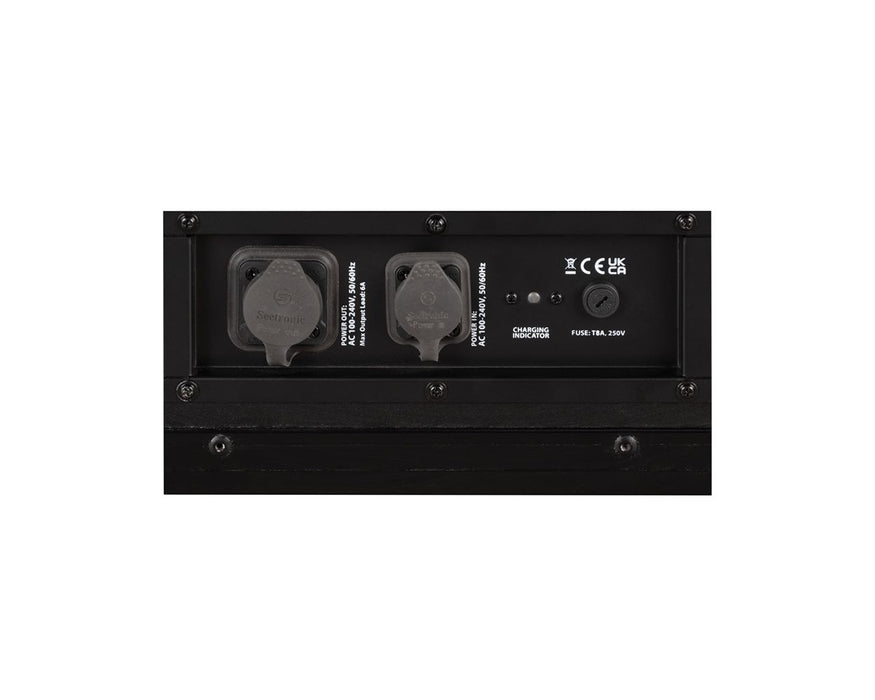

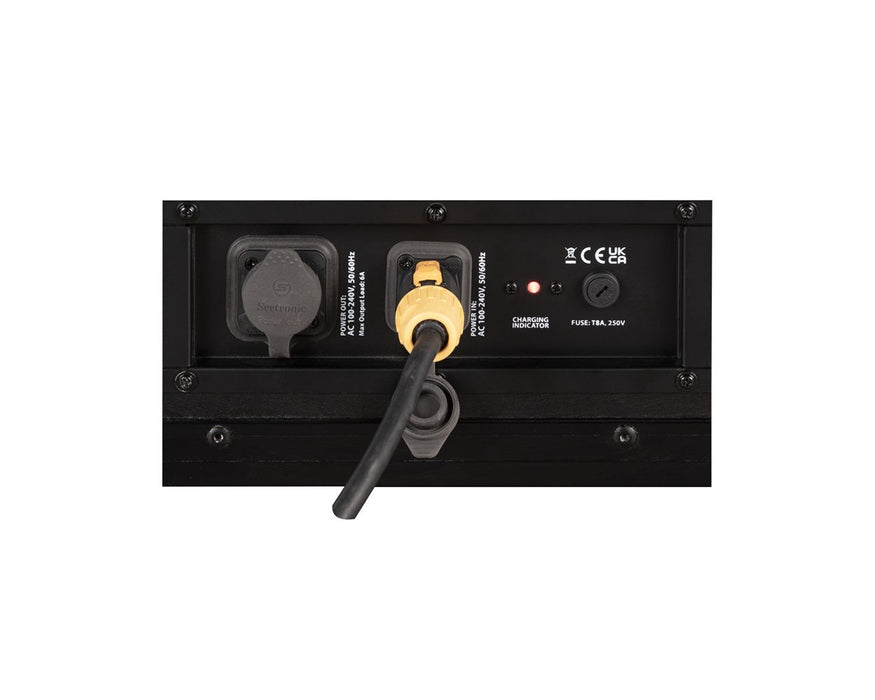

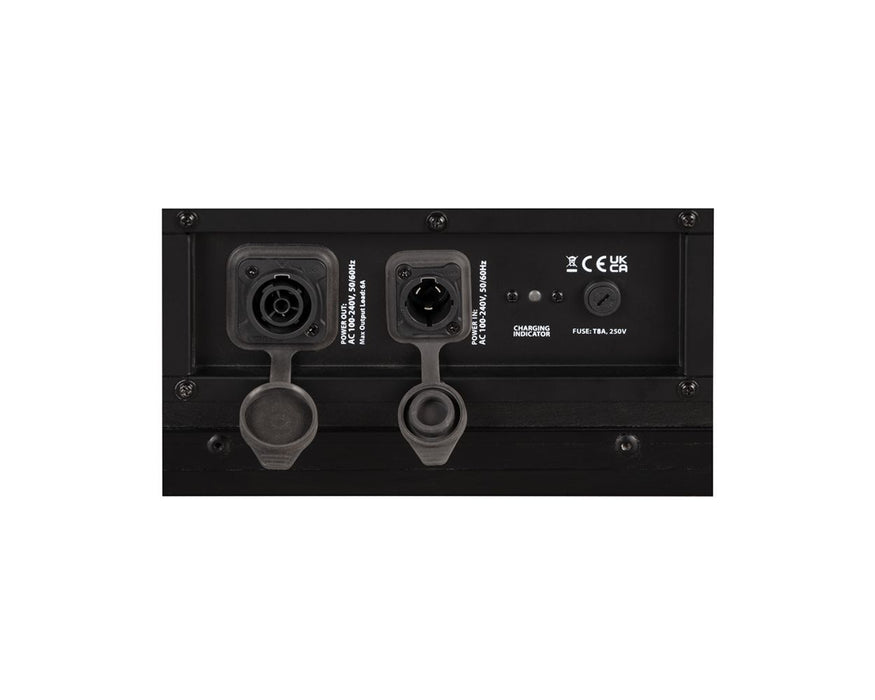

Flight Case Electrical / Thermal

• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 400 Watts
• Power Draw: 4A @120VAC or 2A @ 230VAC
• Charge status indicator
• 14°F to 113°F (-10°C to 45°C)

ElectraPix Par 7 Fixture Source

• (7) 20W Hex Color RGBAL+UV Foreground LED's
• (29) 0.2W RGB Background LED's
• 50,000 Hour Average Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/ Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical

• 2,300K ~ 9,900K White Color Temperature Range
• 17º Beam Angle
• 45mm Lens Diameter x7

Physical

• IP65 Housing
• OLED Digital display
• L Track system for locking accessories / rigging
• Gel Frame Holder
• Adjustable, hanging / kick stand bracket

Control

• DMX512
• Aria X2 Wireless DMX
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (9) DMX Channel Modes: (5, 6, 9, 13, 22, 24, 42, 45 & 60 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

Connections

• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket

Dimensions & Weight

• Length: 11.11* (282.1mm)
• Width: 9.8* (248mm)
• Height: 7.46 (189.5mm)
• Weight: 18.1 Ibs. (8.2 kg)

Power

• AC100-240V/50Hz-60Hz Input
• 90W Power Consumption
• Link 10 pieces @120VAC or 18 pieces @ 230VAC

Battery

• Rechargeable Lithium ion
• Battery Capacity: 12,000m Ah
• Battery Voltage: 22.2V
• Charge Time, AC Power: 5 Hours (To Full)
• Charge Time, Flight Case: 7 Hours (To Full)
• Battery operation can be selected by the user for dura-tons ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
• Battery Cycles: 500

Thermal

• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating

• CE
• cETLus (Control # 4002034)
• FCC
• IP65
