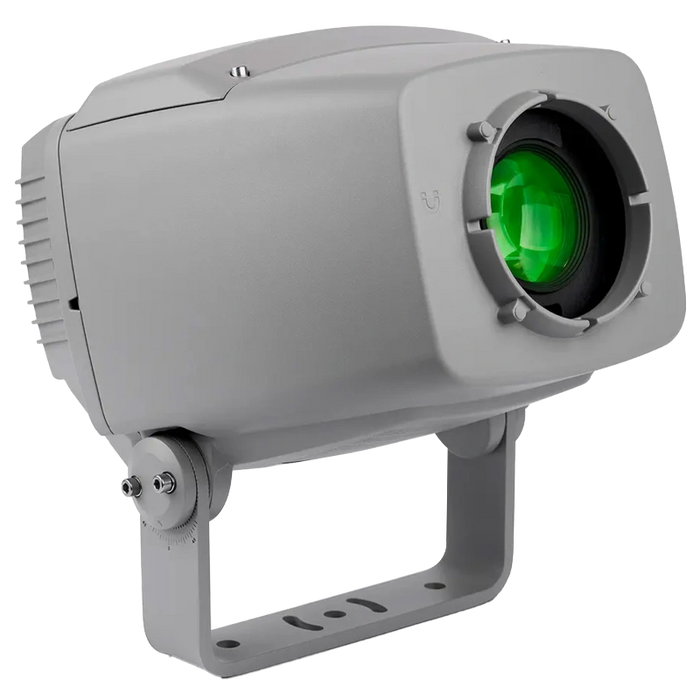

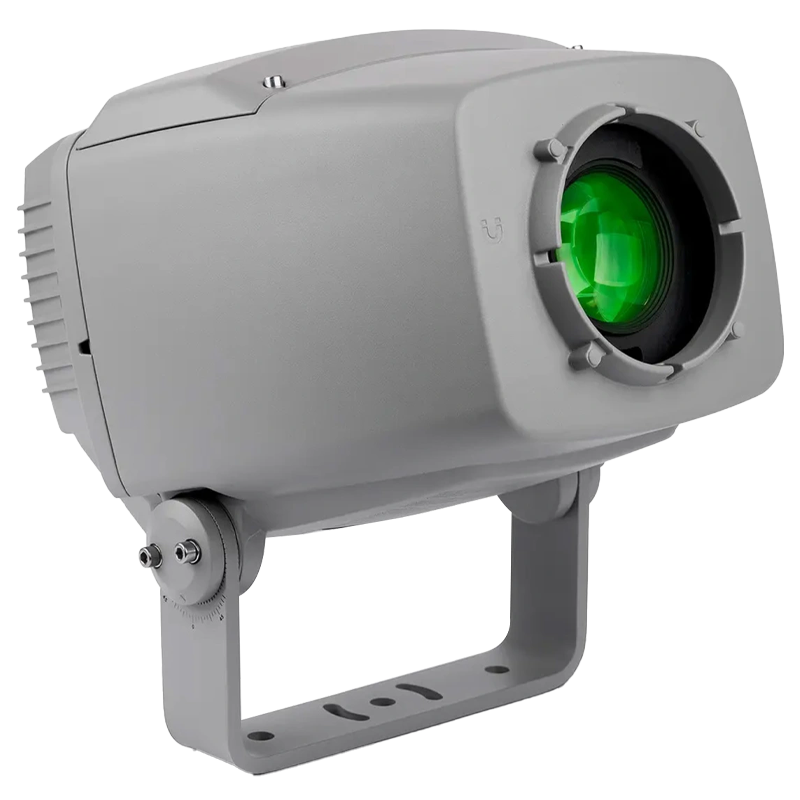

The Martin Exterior Projection Pro Compact is a next-generation outdoor image projector designed to inspire captivating creativity and versatility across a diverse range of architectural, façade, and landscape applications.
Featuring a modular design with 11 configurable options and up to four layers of effects, including precise façade framing, the fixture offers a broad spectrum of creative possibilities while minimizing complexity and cost. Its compact footprint and lightweight design facilitate pole mounting and seamless integration into various setups, delivering multiple application possibilities. The fixture’s sleek, professional appearance ensures it blends effortlessly into any environment.
The built-in zoom system enables precision adjustment of the projection angle from 15° to 45°, supported by an ultra-efficient optical system that consistently delivers 5,200 lumens across the entire zoom range. Engineered for maximum energy efficiency, the fixture includes a dedicated hibernation power mode, activated through the DMX control channel, significantly reducing power consumption when not in use.
Empowering users with control over multiple dynamic effects—including zoom, focus, colors, gobos, and animations—the Exterior Projection Pro Compact inspires the most creative applications. Using the optional framing module, the projected image can be framed to precisely match the façade. Smart controls feature a magnetic switch, DMX, RDM, and stand-alone programming via Martin Companion ensuring straightforward configuration and programming.
Engineered to meet stringent environmental standards, the fixture reduces its carbon footprint through its efficient optical system, FSC-certified packaging, and full repairability. Designed for permanent outdoor installations, it is fully outdoor-rated to withstand the harshest environmental conditions and is backed by Martin’s full, 5-year warranty.
With its modular design, compact form factor, and state-of-the-art features, the fixture is an incredibly advanced and cost-effective solution. Ideal for architectural lighting designers, architects, system integrators, and electrical contractors, it offers unmatched performance, versatility, and user-friendly operation.
Features
- Flat-field, high-contrast image projection
- 5,200 lumens output across the entire zoom range
- Efficient optical system with integrated 15° - 45° zoom system
- Configurable design for reduction of resources, cost, and weight
- One gobo or four gobo modules
- Animation module
- Manual framing module for precise framing of projected image
- 0-100% electronic dimming
- Hibernation mode for very low power consumption
- Compact and slim design
- RDM and DMX control
- Local diagnostics and focusing via magnetic sensor
- Dedicated compartment for install of Power and DMX In/Out cables
- Optional PD Hybrid In/Out cable solution
- Automatic thermal management for safe operation in high and low ambient temperatures
- Fully-weatherized housing (IP66, IK08 and C-5 High corrosion rating)
- Shipped in FSC-certified cardboard packaging
- 5-year warranty
Specifications
Physical
- Length: 13.5 inch
- Width: 10.7 inch
- Height: 13.2 inch
- Weight: 27.5 – 30.6 lbs
Weight depends on actual configuration.
Dynamic Effects
-
Color wheel: 5 dichroic colors (red, green, blue, yellow, CTO) + open
-
Zoom: Motorized, 15° - 45° beam angle
-
Dimming: Electronic, 0-100% continuous dimming
-
Shutter: Strobe and pulse effects, instant open and blackout
-
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
-
Accessory 1-gobo module: indexing, variable rotation
-
Accessory 4-gobo module: selection, indexing, variable rotation
-
Accessory animation module: Continuous rotation with variable speed and direction (always in aperture)
-
Accessory Framing module: 4 blades for manual adjustment of insert and angle (8 finger knobs with locking mechanism)
Control and Programming
-
User interface: Magnetic sensor to call up fixture status and focus fixture
-
Stand-alone control: Up to 20 scenes with individual fade/hold times
-
Control options: DMX, RDM, stand-alone
-
Configuration, addressing and status: Via RDM
-
8-bit control: Color and gobo selection
-
16-bit control: Gobo indexing and rotation, Animation, Focus, Zoom and Intensity
-
DMX channels: 13/14 (Basic / Extended)
-
DMX compliance: USITT DMX512-A
-
RDM compliance: ANSI/ESTA E1.20
Optics
-
Light source: 130W White light LED engine
-
LED lifetime: minimum 30,000 hours (to >70% luminous output)*
-
Full Zoom Range: 15° - 45° (Field Angle)
*Figured obtained under manufacturer's test conditions
Photometric Data
-
CRI (Color Rendering Index): >70
-
Color Temperature: 7,500 K
-
Total output: 5,200 lumens
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction
-
Housing: Cast aluminum
-
Finish: Hard anodized
-
Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
-
Ingress protection: IP66
-
Impact resistance: IK08
-
Corrosion resistance: C5 (very high corrosivity / marine, ISO 12944)
-
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6) 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
-
EPA (Effective Projected Area): 0.1 m²
-
Color options: Traffic Grey RAL 7042, Traffic White RAL 9016, Traffic Black RAL 9017
-
Service Lid: for gobo change or insert of accessory effect modules
Gobos
-
Suitable material: Borosilicate glass, coatings heat resistant to 450°C (842° F)
-
Gobo diameter: 19.0 mm +0/-0.3 mm (0.74 in. +0/-0.02 in.)
-
Maximum image diameter: 15 mm (0.59 in.)
-
Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
-
Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12 in. ±0.012 in.)
-
Aluminum gobo thickness: 0.5 mm ±0.02 mm (0.020 in. ±0.001 in.) HT paint
Installation
-
Mounting: Adjustable yoke
-
Location: Adjustable yoke
-
Orientation: Any, except horizontal angles above 70°
-
Minimum distance to illuminated surfaces: 0.5 m (20 in.)
Connections
-
Power cable entry: IP68 cable gland (accepts 8 mm-12 mm)
-
Power connection: Terminal for power in separate compartment
-
Data cable entry: Terminal for power in separate compartment
-
Data connection: Terminal for data in separate compartment
Electrical
-
AC power: 100-240/277 V nominal, 50/60 Hz
-
Power supply: Auto-ranging electronic switch-mode
-
Surge protection: 4 KV
-
Power factor: 0.98 @ 110 V / 0.96 @ 230 V, 0.91 @ 277 V
-
Max current draw: 0.98 @ 110 V / 0.96 @ 230 V, 0.91 @ 277 V
-
Typical current draw: 1.48 A @110 V, 0.71 A @230 V, 0.63 A @ 277 V *
-
Power Consumption
-
Maximum: 180 W
-
Typical: 160 W *
-
Idle: 10 W *
-
Hibernation: 3 W *
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
- Typical: full output, no effects moving, regulated fan speed.
- Idle: no output, no effects moving, regulated fan speed.
- Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
-
Cooling: Convection, internal forced air
-
Maximum surface temperature: 60° C (140° F)
-
Maximum ambient temperature (Ta max.): 45° C (113° F)*
-
Minimum ambient temperature (Ta min.): -30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
**For instant wake-up with no warm-up mode, leave power applied constantly in ambient temperatures below 0° C (32° F)
Environmental
-
RoHS: Compliant
-
REACH: Compliant
-
WEEE: Compliant
-
Proposition 65: Compliant
-
FSC: Certified cardboard outer packaging
-
Efficacy (max output): 32.9 lm/W
-
LWR*: 416 lm/kg (189 lm/lbs.)
*LWR = Lumen-to-Weight Ratio
Approvals
-
Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)
-
EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
-
EU EMC: EN 55015, EN 55032(Class B), EN55035, EN 61000-3-2, EN 61000-3-3, EN 61547
-
US safety: ANSI/UL 1598
-
US EMC: CFR 47 Part 15 Class B
-
Canadian safety: CSA C22.2 No 250.13
-
Canadian EMC: CAN ICES (B)/ NMB(B)
-
Australia/NZ: RCM
-
BIS certification: (Pending)
