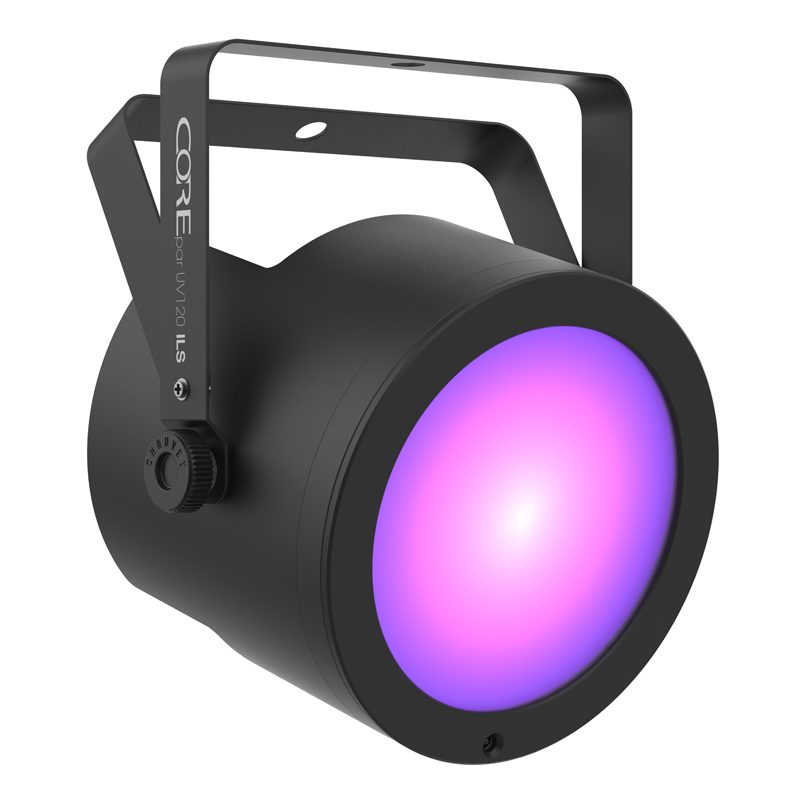

COREpar UV120 ILS Stage Light

The COREpar UV120 ILS is a compact ultra-wide UV wash with COB. (Chip-on-Board) technology. ILS compatibility. D-Fi USB compatibility for wireless Master/Slave or DMX control. Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds.

Withstand the harshness of traveling from gig to gig with a robust housing. Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit. Achieve flicker-free video operation with high-frequency LED dimming. Save time running cables and extension cords by power linking multiple units. Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote.

Fits best in the CHS-40 VIP Gear Bag.

Product Specifications

• DMX Channels: 1 or 5
• DMX Connectors: 3-pin XLR
• Light Source: 1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle (with lens): 21°
• Field Angle (with lens): 34°
• Beam Angle (without lens): 44°
• Filed Angle (without lens): 94°
• Cable Length: 5 ft (1.5 m)
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
