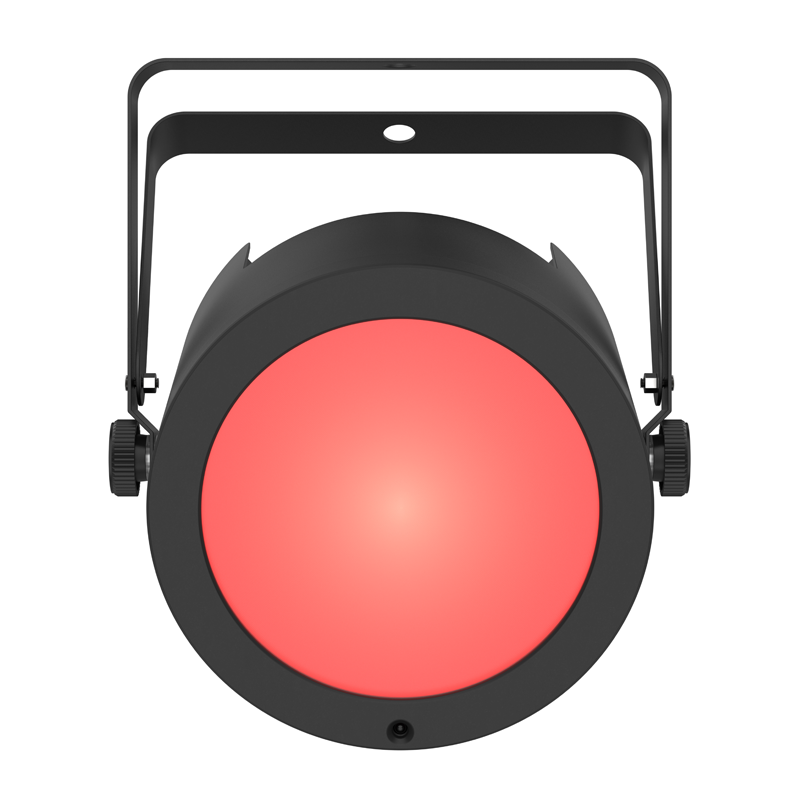

COB (Chip-on-Board) LED produces a full spectrum of light. ILS compatibility for use in the ILS ecosystem. D-Fi USB compatibility. Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds.

Withstand the harshness of traveling from gig to gig with a robust housing. Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit. Achieve flicker-free video operation with high-frequency LED dimming. Save time running cables and extension cords by power linking multiple units. Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote. Create customized colors using the built-in LED display. Achieve smooth LED fading with built-in dimming curves.

Easily transports in the optional CHS-40 VIP Gear Bag.

Product Specifications

  • DMX Channels: 4 or 9
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 COB LED (quad-color RGBW) 120 W, 50,000 hours life expectancy
  • Strobe Rate: 0 to 29 hz
  • Beam Angle (without lens): 56°
  • Field Angle (without lens): 100°
  • Beam Angle (with lens): 20°
  • Field Angle (with lens): 30°
  • Illuminance (without lens): 868 lux @ 2 m
  • Illuminance (with lens): 4,639 lux @ 2 m
  • Color Temperature Range: 2700 K – 6000 K
  • Cable Length: 5ft (1.5 m)
  • Power Linking: 6 units @ 120 V; 10 units @ 230 V
Chauvet DJ
